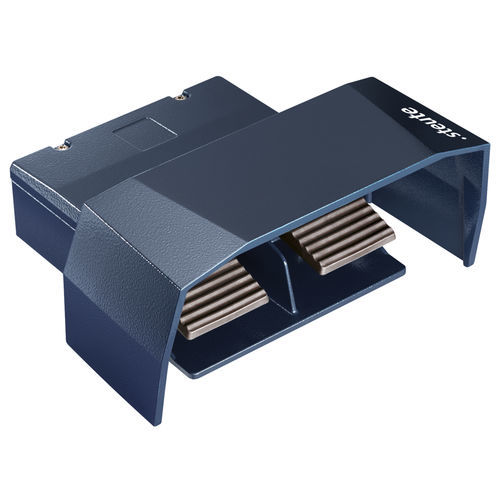

Control foot switch RF GFS 2 SW2.4

electricwireless2 pedals

• Metal enclosure • sWave® 2.4GHz wireless technology • Point-to-Point connection • Pairing via internal push button • Frequency hopping: 32 frequencies (200 hops/s) • Easy programming of receiver • Transmission of battery power • Available on request with special finish in RAL colour tones Applied standards - EN 60947-5-1, EN 300 440-1 V1.3.1, EN 300 440-2 V1.1.2, EN 301 489-1 V1.6.1, EN 301 489-3 V1.4.1, EN 60950, EN 50371 Enclosure - aluminium die-cast, powder-coated Pedal - thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Protective shield - aluminium die-cast, powder-coated Degree of protection - IP 67 to IEC/EN 60529 Protocol - sWave® Frequency - 2.4 - 2.4835 GHz Transmission power - 1 mW Data rate - 250 kbps Channel spacing - 500 kHz Output power - - 6 dBm e.i.r.p (0 dBm at 50 Ohm) Input sensitivity - up to -98 dBm (-104 dBm at 50 Ohm) Modulation principle - 2-FSK Voltage supply - lithium battery Tadiran SL-2770 (replaceable) System - Li/SOCl2 Nominal voltage - 3.6 V Nominal capacity - 8.5 Ah Battery life - approx. 10 years unused, approx. 240 days when operation per h is 10 mins (8 h/d) Transmission incl. frequency change - max. 20 ms Synchronisation after sleep mode - max. 200 ms Current consumption - active: 21 … 25 mA sleep mode: approx. 56 μA Wireless range - max. 20 m indoors Ambient temperature - –20 °C … +65 °C Mechanical life - > 1 million operations Wireless approvals - Europe: RED 2014/53/EU USA: FCC - XK5-SW100AMBINT Canada: IC - 5158A-SW100AMBINT
