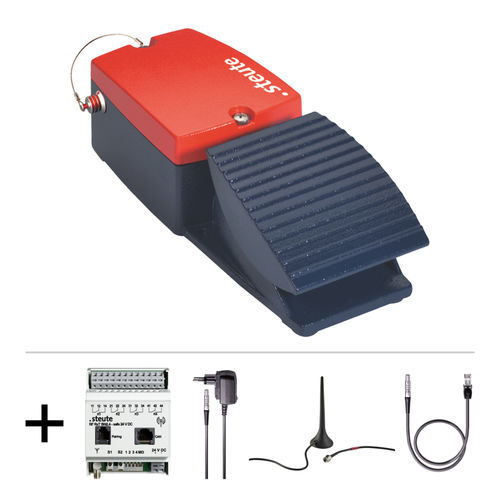

• Foot switch 1-pedal without protective shield
• + charging device
• + wireless receiver RF RxT SW2.4-safe
• + magnetic base antenna
• + pairing cable
• Applied standards - EN 60947-5-1, EN 61000-6-2, EN 62061, EN 61326-3-1, EN ISO 13849-1, EN 61784-3, EN 300 328, EN 301 489-1/-17, EN 60950-1, EN 50371
Enclosure - aluminium die-cast, powder-coated
Degree of protection - IP 67 to IEC/EN 60529
Protocol - sWave®
Frequency - 2.4 - 2.4835 GHz
Transmission power - 3.15 mW
Voltage supply - rechargeable lithium-ion battery
Nominal voltage - 3.7 V
Nominal capacity - 2.25 Ah
Charging device - power supply 7.5 V/800 mA; 1.8 m cable with connector (EURO, UK, USA/JAPAN, AUS, IEC)
Battery life - after 300 charging cycles 80 % battery capacity
Safety-relevant data:
EN ISO 13849-1 - Performance Level PL d
Category - 2
B10d (10 % load) - 20 million
TM - max. 20 years
MTTFd electronic - 216 years
MTTFd - 119 years
DC/DCavg - 84 %
PFHd - 5.28 x 10-7 1/h
nop - 378000
Transmission interval - 1 million operations
Wireless range - max. 15 m indoors
