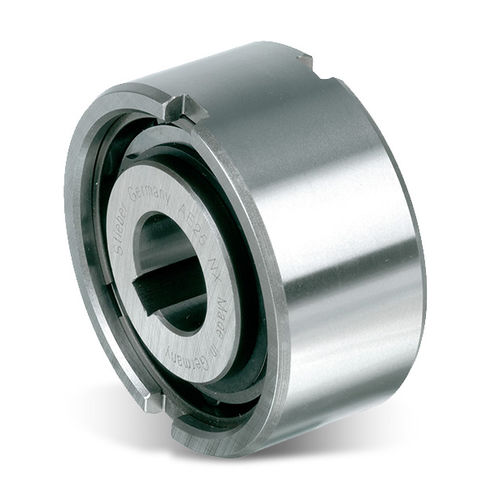

Roller freewheel AE series

without internal bearings

Type AE is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside diameter is a standard ball bearing dimension. A typical arrangement is to install this type beside a bearing with the same housing diameter tolerance as shown on the following page. The inner race is keyed to the shaft. The outer race has a h6* tolerance and should be fitted in a housing with a K7* tolerance. Additional side notches provide for positive torque transmission. If the housing tolerance is to R6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2*.
