Friction clutches
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}
{{#each product.specData:i}}
{{name}}: {{value}}
{{#i!=(product.specData.length-1)}}
{{/end}}
{{/each}}
{{{product.idpText}}}

Torque: 8,000 Nm - 315,000 Nm
Rotational speed: 750 rpm - 2,200 rpm
... VULKAN MESLU clutch is a pneumatically operated double-cone friction clutch for dry running. It is backlash-free, possesses no rubbing surfaces in its internal construction that could ...

Torque: 11,500 Nm - 14,500 Nm
... coupling with a Desch Planox clutch. The VULASTIK L coupling is available in different stiffness ratings so the drive system can be perfectly tuned in terms of torsional vibration. The Planox clutch is ...

Torque: 4 Nm - 1,850 Nm
... force acting on the flyweights overcomes the spring force. When the speed is high enough, the linings contact the clutch drum, and friction between the linings and the drum allows torque to be transmitted ...
SUCO

Torque: 4.3 Nm - 310 Nm
... flyweights lift from their seats and the linings on the flyweights contact the inside diameter of the clutch drum. Friction between the linings and the clutch drum allows torque to be transmitted.
SUCO

Torque: 1.7 Nm - 145 Nm
... force. Then the flyweights lift from their seats and the linings contact the inside diameter of the clutch drum. Friction between the linings and the clutch drum allows torque to be transmitted.
SUCO

Torque: 40 ft.lb - 700 ft.lb
Current is carried through brushes and the collector ring to the rotating magnet. The PC design is less expensive than the SF design.
WARNER ELECTRIC

Torque: 10 Nm - 640 Nm
Rotational speed: 2,200 rpm - 8,600 rpm
The Robatic is an electromagnetic device that is safe in function even if it is wore through its high torque security because of the optimized magnetic circuit. It has a high performance density with low magnetic leakage flux plus a minimum ...

... hydraulic brake. Depending on the torque to be transmitted, the hydraulic control clutches are available with two or more friction discs and different dimensions. The hydraulic cylinder is fed by a rotating distributor, ...

Torque: 65,000 Nm - 850,000 Nm
... aftermarket solution to get back up and running, while extending the life of the clutch with lower friction wear and reduced heat generation. The PDC utilizes a simple air- tube design to provide consistent ...

Rotational speed: 1,800, 1,200, 2,100 rpm
Power Take-Offs Hydraulically actuated and self-adjusting wet clutch Suitable for in-line and side-load applications Advanced control system for smooth engagement Remote actuation via J1939 or switch input No pilot bearing High ...
Twin Disc

Torque: 0.5 Nm - 500 Nm
COMBINORM COMBINORM offers a complete range of brakes, clutches and combinations as integral and add-on components for applications in machines, installations and equipment. COMBINORM B operating current-actuated brakes are the most ...
KEB Automation KG

Torque: 6 Nm - 130 Nm
COMBIBOX Clutch/brake combinations COMBIBOX clutch/brake combinations are designed for joining, separating and holding rotating shafts. The units are constructed in compact aluminium housing and ...
KEB Automation KG

Torque: 0.2 Nm - 2,500 Nm
... need-orientated switching both for conventional cars and in the utility vehicle sector. KEB translates particular requirements for friction capacity, frictional speed, starting and peak torque into high performance customized ...
KEB Automation KG

Torque: 2.7 Nm - 7.9 Nm
Rotational speed: 0 rpm - 3,600 rpm
Clutch designed for general industrial use. Clutches are designed with zero backlash armatures and a double ball bearing field support to provide longer life and better performance versus bushing style units. AMC-E ...
jbj Techniques Limited

Torque: 5.4 Nm - 59.7 Nm
Clutch designed for general industrial applications. Units come standard with zero backlash armature. Units are normally produced in a high torque version but a lower torque is also available which reduces the overall ...
jbj Techniques Limited

Torque: 12.2 Nm - 1,000.6 Nm
Rotational speed: 1,800 rpm - 5,500 rpm
Clutch designed for general industrial use. Suitable for high speed and high cycle applications. Clutch has automatic wear adjustment mechanism which maintains proper air gap over life of the clutch ...
jbj Techniques Limited

Torque: 400 Nm - 12,000 Nm
Electromagnetic switchable Polface Clutch: The SGF switchable clutch is for the connection and disconnection of main and auxiliary drives. The clutches are used e.g. hybrid applications, test benches ...

Torque: 0.2 Nm - 260 Nm
Rotational speed: 2,500 rpm - 16,000 rpm
... Active Clutch Line are designed for the frictionally engaged transmission of torque in dry running. The force effect of an electromagnetic field when applying a DC voltage is used for torque transmission (electromagnetic ...

Torque: 40 Nm - 10,000 Nm

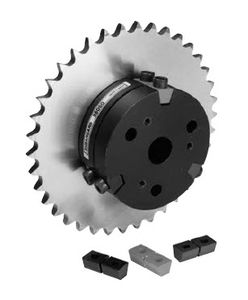

... is stable. The Cross Sheargard Clutch can work with Standard Torque Limiter Platewheels and Roller Chain Couplings. The device is available with a wide range of preset torque ratings and optional sensor ...

Torque: 1.7 Nm - 785 Nm
Rotational speed: 480 rpm - 1,400 rpm

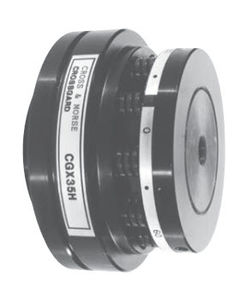

The CGX Crossgard series is manufactured by Cross Morse, and is a clutch that is ideal for use in equipment that requires high performance, and accuracy. The unit also offers an overload protection to the equipment, and ...

Torque: 2.7 Nm - 12,520 Nm
Rotational speed: 20 rpm - 850 rpm
... one revolution or multiple revolutions. This clutch typically provides five times the duty life of wrap spring clutches for indexing, shearing, bending, fastening, loading or similar applications. Each clutch ...
The Hilliard Corporation

Torque: 30 Nm - 569 Nm
Rotational speed: 50 rpm - 500 rpm
... self-contained packages that include a solenoid-operated, single revolution clutch with available anti-rollback and anti-overrun features. Other features include: rugged roller-ramp clutch design, dimensionally ...
The Hilliard Corporation

Torque: 22 Nm - 49 Nm
Rotational speed: 40 rpm - 400 rpm
The IDU consists of a single revolution clutch and all necessary controls engineered into a compact, totally enclosed, foot mounted housing. This unit is also available with a unique acceleration-deceleration unit (IDU/ADU) ...
The Hilliard Corporation

Torque: 4,340 Nm - 380,800 Nm
WPT Power Grip PO Clutch is suitable for in-line and shaft-to-shaft power transmission applications. The design features a large diaphragm which provides maximum torque and compensation for wear over the clutch ...
WPT Power Corporation

Torque: 168,000 Nm - 1,250,000 Nm
Rotational speed: 380 rpm - 900 rpm
Power Grip Grinding Mill Clutches are the best heavy duty option for ball, pebble, rod, AG and SAG grinding mill applications. High inertia loads are brought on line quickly and smoothly where controlled starts are required. WPT’s Power ...
WPT Power Corporation

Torque: 232 Nm - 8,465 Nm
... power take-off consists of a lever actuated clutch with a shaft and bearings mounted in a rigid cast housing. With its simplified installation and sealed-for-life pilot bearings, this mechanical PTO clutch ...
WPT Power Corporation

Torque: 58 ft.lb - 1,500 ft.lb
... are also used as clutches for hydraulic pumps (clutch pump), water pump clutches, electromagnetic fan clutches and clutches for vacuum pumps. The units that are used to clutch hydraulic pumps and to clutch ...
OGURA SAS

Torque: 110 ft.lb - 250 ft.lb
Rotational speed: 3,600 rpm
... shown a significant improvement in life over other standard high temp greases. E-COATING Where possible, all parts in the clutch are e-coated to give maximum corrosion protection. HIGH TEMPERATURE EPOXY COIL To help ...
OGURA SAS

Torque: 110 ft.lb - 350 ft.lb
Rotational speed: 3,600 rpm
... the use of these clutches, since they serve as reliable means of mower deck and implement control. The device, along with a clutch brake, is used in remotely accessing the cutting wheel, thus allowing the user to control ...
OGURA SAS

Torque: 17.5 Nm - 550 Nm
Rotational speed: 1,000 rpm - 2,500 rpm
The NE type pneumatic clutch by EIDE is a compact unit with a pneumatic clutch which disengages via a spring reaction. The actuator is powered radially with compressed air at a nominal pressure of 5.5 ...
EIDE

Torque: 530 Nm - 1,750 Nm
Rotational speed: 2,000 rpm - 3,000 rpm
The ENP type pneumatic clutch by EIDE is a compact air clutch which disengages via a spring reaction. The ENP clutch has an integrated pulley, which means it is extremely compact, robust, ...
EIDE

Torque: 1.5 Nm - 700 Nm
Rotational speed: 1,400 rpm - 10,000 rpm
EIDE’s SEE electromagnetic single disc clutch is made up of an armature core with its corresponding coil, a rotor mounted on the keyed shaft with incorporated friction material. EIDE manufacture electromagnetic ...
EIDE

... Ventilated Clutch is mainly designed to provide a good quality performance and functionality. It is ideally built with a smoothly operated acceleration capability which is very suitable for several in-line power applications. ...
Wichita Clutch

Torque: 1.25 Nm
OK has developed a new type of uni-directional clutch, named the SR2. The SR2 provides controlled motion to adjust height at any position. Through its inverse interrupting mechanism, this breakthrough technique conducts ...

Torque: 12.5 Nm
SR12 series is a high torque clutch that can move your equipment and products smoothly and stop heavy objects at any position. This can handle high torque, but can be installed with less space. Benefit: ✓Easy operation ...

Torque: 0 Nm - 16,800 Nm
Rotational speed: 3,600, 2,050, 4,000 rpm
TPO air clutches are very strong and reliable components, the technical development of which has been achieved with a few dozen years experience in the field of transmissions.Their range of performance can fulfill the most different applications, ...
Transfluid

Torque: 108 Nm - 1,157 Nm
Rotational speed: 2,500 rpm - 5,000 rpm
... pressure.Advantages of Transfluid oil actuated clutches:No adjustment required for wear.Constant torque for the life of the friction plates.Compact size to torque capacity because the torque is not affected by worn plates ...
Transfluid

Torque: 1,400 Nm - 7,700 Nm
Rotational speed: 900 rpm - 2,700 rpm
... compared to the traditional overcenter PTOs. In addition, due to the continuous pressure applied to the clutch plates, the HFO is a self adjusting clutch which drastically reduces the maintenance costs ...
Transfluid




Torque: 5 Nm - 30,000 Nm
Rotational speed: 3,200 rpm - 11,000 rpm
Roller phase pneumatic clutch 'DSR/F/AP' Transmission through rollers with re-engagement in phase 360° (equidistant on request, 30°, 45°, …). Free rotation for long periods after overload: … / CS. Suitable ...

Torque: 3 Nm - 875 Nm
Rotational speed: 2,250 rpm - 7,600 rpm
Friction pneumatic clutch 'DSF/TF/AP' Friction torque transmission. As tensioner, brake and torque limiter. Constant adjustment of the calibration torque. Available ...

... created where there is a requirement for speed and speed to be able to optmize the effectiveness of several machine works. The clutch and brakes are especially field tested with a very dependable and power efficient capability.

Torque: 375.1 Nm - 2,395.73 Nm
Through Shaft Bored, Pilot Mount Friction Clutches Operation Friction type heavy duty clutch engages with air pressure, spring released when air is exhausted Torque is linear in ...
Mach III Clutch, Inc.

... ambient air through the clutch or brake to dissipate the heat generated by constant slip, preventing friction lining fade and premature wear. SMOOTH OPERATION Smoothness is assured through precision ...
Mach III Clutch, Inc.

Torque: 327.76 Nm - 2,754 Nm
End of Shaft Bored, Pilot Mount Friction Clutches Operation Friction type heavy duty clutch is engaged with spring pressure A fixed amount of torque is transmitted To release clutch, ...
Mach III Clutch, Inc.

Torque: 45 Nm - 1,050 Nm
Rotational speed: 2,000 rpm - 4,500 rpm
Hydraulic multidisc clutch with static cylinder. Used mainly for oil bath applications, in the presence of oil mist and in dry applications at low rpm. Transmission of motion between the internal shaft fastened to ...
MWM FRENI-FRIZIONI

Torque: 0.2 Nm - 200 Nm
Rotational speed: 0 rpm - 1,800 rpm
The DMB is a factory set torque limiter. The torque value can’t be adjusted later and thus protects against handling errors during installation and usage. Fixed torque value Square connections Customization possible RoHs compliant ...
