Roller clutch DSR/F/APpneumaticsingle-positionbi-directional
Add to favorites
Compare this product
Characteristics
- Type
- roller
- Operation
- pneumatic
- Other characteristics
- single-position, bi-directional
- Torque
Min.: 5 Nm
(3.687811 ft.lb)Max.: 30,000 Nm
(22,126.864478 ft.lb)- Rotational speed
Min.: 3,200 rpm
(20,106.193 rad.min-1)Max.: 11,000 rpm
(69,115.0384 rad.min-1)
Description

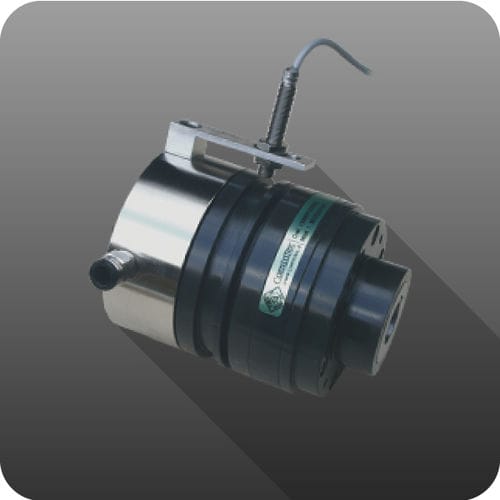

Roller phase pneumatic clutch 'DSR/F/AP'
Transmission through rollers with re-engagement in phase 360° (equidistant on request, 30°, 45°, …).
Free rotation for long periods after overload: … / CS.
Suitable for high rotation speeds.
Maintenance free for high reliability.
Arranged to add a microswitch / proximity to stop the motor drive.
Torque range: 5 – 30000 Nm; max. bore ø120 mm.
