friction clutch / multiple-disc / pneumatic / spring
ENP series

{{requestButtons}}

Characteristics

  • Type:

    friction, multiple-disc

  • Operation:

    pneumatic, spring

  • Other characteristics:

    with bearings

  • Applications:

    PTO, air conditioning compressor

  • Torque:

    Min.: 530 Nm (390.9079 ft.lb)

    Max.: 1,750 Nm (1,290.7338 ft.lb)

  • Rotational speed:

    Min.: 2,000 rpm (12,566.37 rad.min-1)

    Max.: 3,000 rpm (18,849.56 rad.min-1)

Description

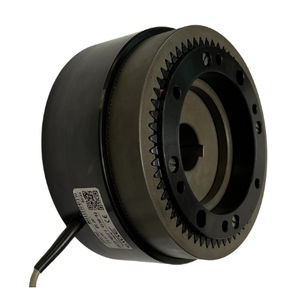

The ENP type pneumatic clutch by EIDE is a compact air clutch which disengages via a spring reaction. The ENP clutch has an integrated pulley, which means it is extremely compact, robust, light and has no protruding parts. Another benefit is its watertightness, making it resistant to adverse operating conditions with presence of water, dust, etc.
