High load capacity couplings

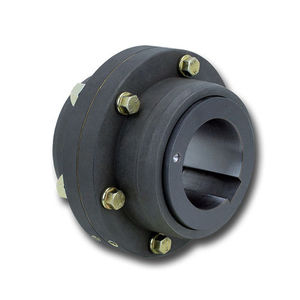

Very high-torque ratings, along with unparalleled bore capacities, give this coupling a great advantage over other types of couplings. SKF Gear Couplings ...

Torque: 52 Nm - 186,000 Nm
Rotational speed: 1,100 rpm - 6,000 rpm

In high output (kW) and high torque applications where vibration, shock loads and misalignment occur, SKF Grid Couplings are an excellent choice. The ...

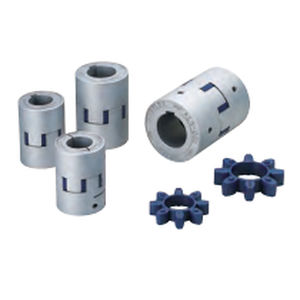

Jaw couplings provide a cost-effective solution for standard power applications, cushioning moderate shock loads and dampening low vibration levels. Maintenance-free and easy to install, jaw couplings ...

Torque: 721 Nm - 210,776 Nm

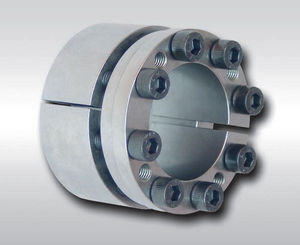

Heavy duty, external shaft locking device Very high torque Self-centering Exceptional concentricity Metric shafts 25mm to 240mm (larger upon request) Inch shafts 1 to 6-1/2 inch (larger upon request)

Torque: 338 Nm - 4,271 Nm
Rotational speed: 4.7 rpm - 1,080 rpm

Greater torque and bore capacity (compared to L type) Elastomeric cushions are radially removable Accommodates for angular and parallel shaft misalignment Fail-safe (will still perform if elastomeric cushions fail) No ...

Torque: 3,774 Nm - 19,209 Nm
Rotational speed: 53 rpm - 3,600 rpm

... torque and bore capacity jaw coupling (compared to L & C Type) Elastomeric cushions are radially removable Accommodates for angular and parallel shaft misalignment Fail-safe (will still perform if ...

HEAVY DUTY SHAFT COUPLING CLAMP For frequent changeover of machinery or fixture. Shaft Coupling Clamps reduce your setup time in packaging/printing food processing ...

Torque: 5,200 Nm - 32,500 Nm
Rotational speed: 2,100 rpm - 2,750 rpm

... of the element increases the heat dissipation considerably which results in high power loss. Accordingly VULKARDAN F couplings can also be installed in applications with high alternating ...

Torque: 1,000 Nm - 560,000 Nm
Rotational speed: 1,200 rpm - 8,000 rpm

Torsional rigid coupling, the flexibility of which is guaranteed by crowned gear teeth profile Applications High Speed shaft - low speed shaft of machinery requiring synchronous ...

Torque: 150 Nm - 17,560 Nm
Rotational speed: 3,100 rpm - 19,500 rpm

... type coupling suitable for demanding industrial applications. The torque is transmitted through the coupling by means of tension and compression of the high strength stainless steel ...

Torque: 382 Nm - 429,000 Nm

High torque transmission capacity type ・Capable of transmitting 1.5 to 3 times the AS Series rated torque capacity. ※With self-centering function. No need for the hassle ...

Torque: 90 Nm - 489 Nm
Rotational speed: 0 rpm - 15,000 rpm

... adaptors for Φ16 taper shafts. ・Secure Coupling The adoption of the taper lock system allows for larger shaft coupling force. ・High Torsional Stiffness Does not have a flexible structure, ...

Torque: 78 Nm - 23,780 Nm
Rotational speed: 1,060 rpm - 6,000 rpm

... - Power transmission through high tensile bolts - Highly stiff rubber Bushes are capable to bear the shock load - Rubber bushes remain unaffected from water, oil or dust & suit to temperature up to 80ºC - ...

... power • Sustain very high torque rating • Suitable for high speed applications • Heavy duty design with flexibility • Counters all ...

Torque: 2,400 Nm - 338,000 Nm

... possible. Fine adjustments of the hub can be made when mounting. Good concentricity, also after several mountings. High radial load capacity.

Torque: 600 Nm - 76,403 Nm

... CFS Wedgegard couplings combine a Centaflex half coupling with the Wedgegard torque limiter. Units can be supplied bored and keywayed to customer re- quirements. CFS Couplings are designed ...

... correct position between flanges. Equal load sharing with multiple pins on high torque drives. Very high capacity within compact dimensions. Shear ...

Torque: 200 Nm - 110,000 Nm
Rotational speed: 1,300 rpm - 4,200 rpm

... Highly torsionally flexible rubber disc coupling for internal combustion engine drives * Very high torsional flexibility with a linear torsional deflection characteristic * High torsional ...

Torque: 100 Nm - 10,000 Nm
Rotational speed: 1,800 rpm - 10,000 rpm

... description The technical data applies only to the complete coupling or the corresponding coupling elements. It is the customer’s/user’s responsibility to ensure there are no inadmissible loads ...

Torque: 190 Nm - 2,800 Nm

... Centres the shaft to the hub All parts 35 µm chemically nickel-coated for high corrosion resistance pursuant to DIN 50021 (neutral salt spray test) High transmissible torques Radial ...

Torque: 170 Nm - 2,300 Nm

three-part design corrosion-resistant in stainless steel Features High transmissible torques Tightening of clamping screws with a torque wrench Easy disassembly without jacking screws Centres ...

Torque: 1,330 Nm - 391,500 Nm
Rotational speed: 1,450 rpm - 8,000 rpm

... the AGMA standard (American Gear Manufacturer Association) up to coupling size 0090 - High power to weight ratio Typical application - Roll drives in the steel and paper industry - Pumps - Conveyors - ...

Torque: 7,000 Nm - 1,206,000 Nm

Cone Clamping Elements RLK 404 centres the hub to the shaft high transmissible torque Features - Centres the hub to the shaft - High transmissible torque - No axial displacement between hub and ...

Torque: 580 Nm - 70,000 Nm

Cone Clamping Elements RLK 130 centres the hub to the shaft very high transmissible torque Features - Centres the shaft to the hub - Very high transmissible torques - For shaft diameters between ...

Torque: 1,330 Nm - 391,500 Nm

Gear Couplings with double engagement gearing Features - High nominal torques up to 391 500 Nm - High misalignment capability - Compensation of axial, radial and angular misalignments ...

Torque: 48 Nm - 36,450 Nm
Rotational speed: 1,500 rpm - 7,000 rpm

Couplings with rubber elements and a flange for direct connection to the flywheel of endothermic engines with greater hub lengths than those of the GCF series. These couplings can be connected directly ...

Torque: 600 Nm - 90,000 Nm
Rotational speed: 700 rpm - 6,000 rpm

Coupling types GFA and GFAS are designed for heavy industrial applications, providing a torsionally stiff connection of shafts which can accommodate angular and parallel misalignment and axial movement. Gear Couplings ...

Torque: 170 Nm - 1,943,000 Nm

... of large diameter shafts with small hub sizes, and is popular for connection of large sprocket and pulleys. The design provides for optimum concentricity, with high torque transmission. ...

Torque: 100 Nm - 3,240 Nm

STANDARD FLEXIBLE COUPLINGS FOR MANY AREAS OF APPLICATION “Standard” flexible couplings are elastic coupling elements developed for installation in the most diverse drive train applications. ...

Torque: 3,900 Nm - 44,200 Nm
Rotational speed: 3,400 rpm - 4,100 rpm

The new SGFlex-LC coupling system covers the torque range between our SGFlex-3F and TENBEX-ECO coupling systems. The SGFlex link assemblies inside the coupling work with seperate link ...

Torque: 0.25 Nm - 250 Nm
Rotational speed: 0 rpm - 10,000 rpm

... extremely high torsional stiffness combined with possible compensation in axial and angular direction. Due to the light and high-strength aluminum alloy it has a low mass inertia. - Hubs out of high-strength ...

Torque: 0.25 Nm - 250 Nm
Rotational speed: 0 rpm - 10,000 rpm

... series impresses with its high torsional stiffness including a possible compensation function in axial, parallel and angular direction. Due to the light and high-strength aluminum alloy, it has a low ...

Torque: 2 Nm - 400 Nm
Rotational speed: 3,500 rpm - 40,000 rpm

... sliced coupling is the ideal way to compensate all types of misalignment. Their unique slot structure is the best solution for non-aligned shafts or highly resonant installation situations. One-piece production favors ...

Torque: 1.1 Nm - 65 Nm
Rotational speed: 9,000 rpm - 42,000 rpm

XG2 is a single piece construction coupling with the two aluminum hubs molded with high-gain rubber. It surpasses XGT-C XGL-C XGS-C in performance. The optimal damping and rigidity design enables realization ...

Torque: 1.8 Nm - 49 Nm
Rotational speed: 9,000 rpm - 31,000 rpm

... clamp type) MJS-CSK (single clamp + keyway) Optional Services -Couplings Bore and Keyway Additional Modification Service -Cleanroom Wash / Cleanroom Packing Service -Coupling Stainless Steel Screw ...

Torque: 1.5, 3.3, 6.3, 12 Nm
Rotational speed: 12,000, 15,000, 17,000, 23,000 rad.min-1

... motor shaft hub to the driven shaft hub, for high rigidity. Achieves high positioning accuracy under high loads, in addition to high servomotor gain. Application Actuator ...

Torque: 7.5 Nm - 940 Nm
Rotational speed: 5,000 rpm - 20,000 rpm

LK10 Series Locking Assemblies Flexible Coupling · Using locking assemblies connect, curved jaw type flexible coupling - · Zero backlash - · Excellent response and high ...

Torque: 25 Nm - 7,900 Nm
Rotational speed: 3,400 rpm - 15,000 rpm

LK11 Keyway Disc Coupling (Double Disc) · Using keyway connect, plate springs coupling - · Zero backlash - · Excellent response and high torque ...

Torque: 60 Nm - 800 Nm
Rotational speed: 8,000 rpm - 18,000 rpm

LK24 series Clamp Type(Single Plate Spring) · Using the double clamp connection type diaphragm coupling; - · Strong rigidity, big transmission torque

Torque: 100 Nm
Rotational speed: 12,000 rpm

... HKI 97 metal multiple disc couplings compensate for increased parallel misalignment up to ±1 mm and increased axial misalignment up to ±2 mm, thus extending the service life of tacho generators. The double-jointed couplings ...

Torque: 7,300 Nm - 1,247,000 Nm

high capacity self-centering, self-locking two thrust rings with single taper design tolerances: shaft h7-h11; hob bore H7-H11 surface finish of shaft and hub bore Ra<3.2 µm    Composition ...

Torque: 950 Nm - 1,071,000 Nm

high capacity self-centering, self locking fixed axial hub position during tightening single taper design with two outer rings well suited to transmit high bending ...

Torque: 4,600 Nm - 44,300 Nm

The Locking Assembly MAV 4061 L is ideally designed to provide an excellent quality performance. It is built with a high capacitative torque unit with a self-locking and sel-centering capability. It also has zero axial ...

Torque: 0 Nm - 21,000 Nm
Rotational speed: 600 rpm - 4,000 rpm

... TRANSFLUID coupling is a hydrokinetic transmission. The impellers perform like a centrifugal pump and a hydraulic turbine. With an input drive to the pump (e.g. electric motor or Diesel engine) kinetic energy is imparted ...

Torque: 80,000 Nm
Rotational speed: 600 rpm - 3,600 rpm

... from a sump to the hydrodinamic coupling circuit, where it is finally “drained off” through a series of orifice plugs, back into the sump. The “START UP” principle: By controlling the coupling’s ...

Torque: 5,500 Nm
Rotational speed: 1,000 rpm - 2,600 rpm

... performances of a fluid coupling. The KPTO has an integral feeding pump driven by the Diesel engine.A remote electrically operated ON-OFF valve allows the fluid coupling circuit feed when turned ON and ...

Torque: 10,000 Nm - 100,000 Nm

... request. Properties of Bellows Couplings model BX1: for high torque applications compact, simple design easy mounting and dismounting backlash free and torsionally rigid ...

Torque: 10,000 Nm - 100,000 Nm

... flexible, high grade stainless steel; hubs made from steel Non standard applications: Custom designs with various tolerances, keyways, materials, dimensions, etc. available upon request. Properties of Bellows Couplings ...

Torque: 10,000 Nm - 150,000 Nm

... request. Properties of Bellows Coupling model BX6: for high torque applications compact, simple design easy mounting and dismounting backlash free and torsionally rigid ...
