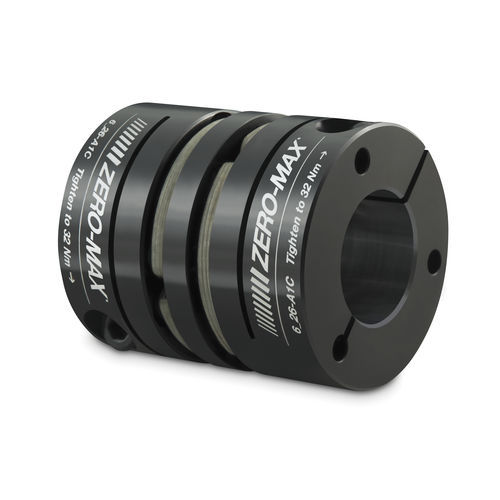

Double shaft coupling Double Flex 6P-A1Cflexiblecompactmetal bellows
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Construction
- compact, metal bellows, shaft-hub, double, 3-part, with spacer, aluminum, clamp
- Product applications
- transmission, for shafts, for mechanical power transmission, blower, for conveyor, for the textile industry, for mixers, for wind turbine, for servo motors, industrial, for spindles, for torque transducer, motor, for machines, for printing machines, for the packaging industry, generator, gearbox, for machine tools, for pump
- Performance
- zero-backlash, maintenance-free, high-torque, high-performance, high-speed, low noise and vibration, high load capacity, heavy-duty
- Other characteristics
- torque, misalignment correction, anti-vibration, compensating, with high torsional flexibility
- Installation system
- flange, set screw
- Torque
Min.: 20 Nm
(14.751243 ft.lb)Max.: 282 Nm
(207.992526 ft.lb)- Rotational speed
Min.: 6,700 rpm
(42,097.3416 rad.min-1)Max.: 15,000 rpm
(94,247.7796 rad.min-1)
Description
The Double Flex 6P-A1C double-cardanic version of the backlash-free composite disc coupling allows compensation of very high axial and parallel misalignments. The compact aluminum clamping hub design of the double cardanic version offers very low inertia and weight. The innovative design of the spring pack guarantees high torsional stiffness with long service life in continuous operation. The 6P-A1C clamping hub design enables use in applications with high requirements for misalignment compensation, low reaction loads and high torsional stiffness.
Compact aluminum hub design in double-cardanic style
Compensation of large shaft misalignments (especially parallel and axial misalignment)
Very low reaction forces
Electrically insulating and high chemical resistance
Temperature range from -57 °C – 121 °C
Nominal torque range from 20 to 282 Nm
Catalogs
No catalogs are available for this product.
See all of ZERO-MAX Europe‘s catalogsOther ZERO-MAX Europe products
CD Composite Disc Couplings
