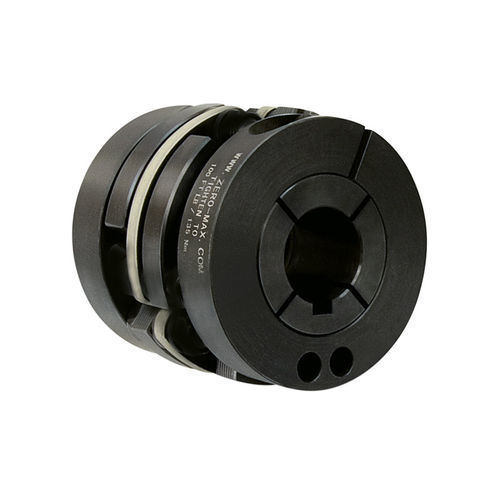

Disc coupling 6A-C
compactclampwith bore

Disc coupling - 6A-C - ZERO-MAX Europe - compact / clamp / with bore
Disc coupling - 6A-C - ZERO-MAX Europe - compact / clamp / with bore
Disc coupling - 6A-C - ZERO-MAX Europe - compact / clamp / with bore - image - 2
Add to favorites
Compare this product
Go to the ZERO-MAX Europe website for more information

Characteristics

Type
disc
Construction
compact, clamp, with bore, with clamping ring
Product applications
transmission, shaft, for milling spindle, for robots, for coordinate measuring machines, for medical devices, for excavators, for marine applications, industrial, for mechanical power transmission, motor, for the packaging industry, for chemical applications, for heavy loads, for servo motors, for the aerospace industry, breaker, pharmaceutical products, blower, for lathes, gearbox, for mixers, for vehicles, cylinder, for blowers, for machines, turbine, for paper machines, for spindles, for test benches, for cleaners, for the food industry, flange, horizontal operation, turntable, for machine tools, for printing machines, for the textile industry, for conveyor, for robotics
Performance
backlash-free, high-torque, maintenance-free, high-performance, high-speed, non-lubricated, high load capacity
Other characteristics
torque, misalignment correction, custom-made, compensating, variable-speed, dry, high-position
Installation system
flange, set screw
Torque

Max.: 5,333 Nm
(3,933.418942 ft.lb)

Min.: 20 Nm
(14.751243 ft.lb)

Rotational speed

Max.: 14,000 rpm
(87,964.5943 rad.min-1)

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Description

The Single Flex 6A-C version of the backlash-free composite disc coupling enables the compensation of very high shaft misalignments in axial and angular direction. The compact design of the single cardanic version with clamping ring connection offers a high reliability and performance level. The disc pack design allows high shock load capacity and is ideal for reversing operation. Steel hubs and clamping ring in a compact design High torsional stiffness Electrically insulating and high chemical resistance Temperature range from -57 °C – 121 °C Maintenance-free operation with easy installation and replacementation
