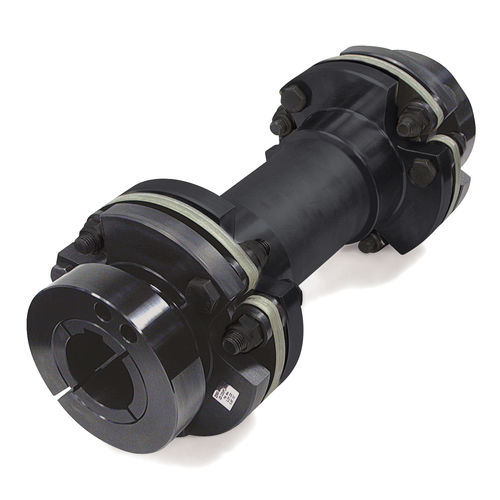

Shaft coupling with floating shaft 6F-C seriesflexiblecompactmetal bellows
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Construction
- compact, metal bellows, shaft-hub, with spacer, with clamping ring, with floating shaft, clamp
- Product applications
- for shafts, transmission, for conveyor, for mechanical power transmission, for the textile industry, for machine tools, generator, for spindles, for servo motors, industrial, motor, for mixers, for compressors, for machines, for printing machines, for the packaging industry, gearbox, for torque transducer, for pump, blower
- Performance
- backlash-free, maintenance-free, high-torque, high-performance, high-speed, low noise and vibration, high load capacity, heavy-duty
- Other characteristics
- torque, misalignment correction, anti-vibration, compensating, with high torsional flexibility
- Installation system
- flange, set screw
- Torque
Max.: 1,164 Nm
(858.522342 ft.lb)Min.: 30 Nm
(22.126864 ft.lb)
Description
The backlash-free and torsionally stiff Floating shaft 6F-C spacer couplings enable torque transmission from spatially spaced drive and load components. High center distances can be custom manufactured to the required length of the connecting shaft. The unique design of the clamping ring design enables backlash-free operation and offers excellent possibilities for compensating high shaft misalignments.
Backlash-free and compact steel hub design
Total length up to 4,500 mm possible
Compensation of very large shaft misalignments possible
Very low reaction forces
High torsional stiffness
Catalogs
CD® Couplings
24 Pages
