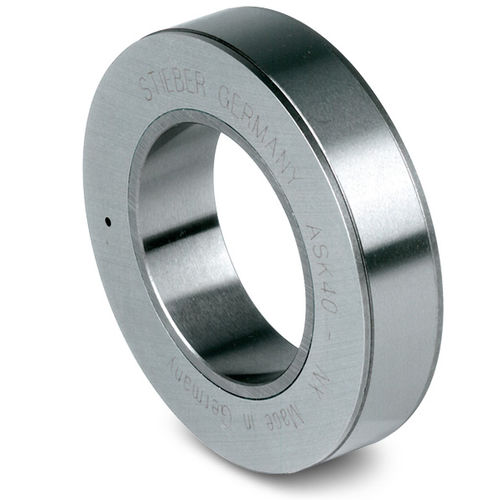

One-way roller clutch ASK seriesfull-facewith internal bearings
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Construction
- full-face, with internal bearings
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 250 Nm
(184.3905 ft.lb)- Diameter
68 mm, 80 mm, 95 mm
(2.68 in, 3.15 in, 3.74 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)
Description
The ASK series is manufactured by Stieber, and is a bearing-supported self-contained one-way clutch which has nominal outside dimensions that are the same as a 60.. series bearing. It has a torque transmission which guaranteed by a press fit on both the inner and outer race.
There is a standard clearance that is C4 due to the press fit, which has an interference tolerance on the freewheel dimensions. It permits a direct mounting in standard series 60.. bearing location, which the shaft tolerance should be h6 or j6.
The outer race is pressed into a compact casing to K6 tolerance, and the radial bearing load capacities are given in the table.
