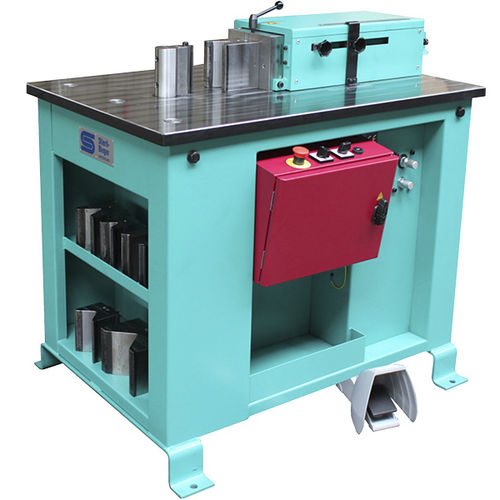

Hydraulic bending machine 220 HE
manualtubefor flat profiles

hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
hydraulic bending machine
Add to favorites
Compare this product


hydraulic, manual
Product handled
tube, for flat profiles, concrete reinforcement, for steel bar, busbar, sheet metal, for wires, cable
Other characteristics
universal, compact
Bending capacity

Max.: 130,000 µm (5 in)

Min.: 16 µm

Bending force

Max.: 220 kN

Min.: 22 kN

Total height

130 mm (5 in)


650 kg (1,433 lb)


Max.: 400 V

Min.: 50 V

Total power

3 kW (4.1 hp)


The Stierli-Bieger 220 HE is a very efficient and compact horizontal press. The solid steel compound machine plate has a very strong tool holder with a diameter of 60 mm and a depth of 110 mm. An extremely wide range of tasks can be carried out with the 130 mm tools. The central bending pin holder is reinforced by a hardened steel bushing. Three further holes are for the plug-in pins of the pipe bending or straightening tools. The very large working plate ensures effective positioning of very large bent parts. The special oil-lubricated guided cylinder requires no maintenance! The working pressure of 220 kN is delivered with the full stroke length of 200 mm and at full operating speed. The stroke limitation operates electro-hydraulically with the tried and tested Stierli switch-off system with Vernier scale and 0 mark. It is operated with the foot switch or the special manual control cable, with which jogging mode, automatic mode and the straightening function can be actuated. The machine can be transported easily inside the factory with a crane or pallet truck. Two tool trays provide organised storage of the tools so that they are always to hand. Please also note the wide range of tools! The manual control is available for all horizontal bending and straightening machines. It has proved itself over decades of use and is easy to use for any member of staff. The fine stroke adjustment allows precise bending and straightening. Simple and easy setting of the cylinder advance and return position Precise bending and straightening with fine stroke adjustment Continuous speed regulation 0 - 0.6 m/min (from the 220 HE model) Continuous pressure regulation
