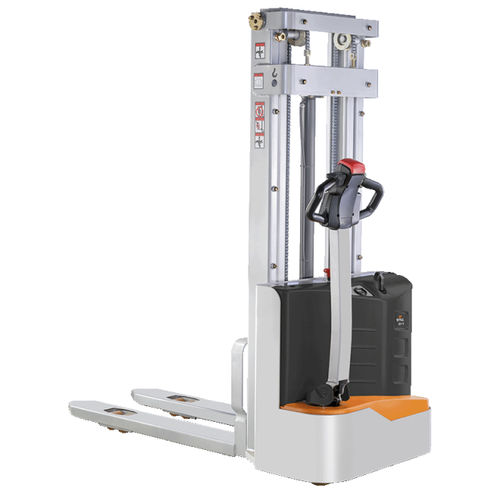

High-lift stacker truck ECV 10

electricwalk-behind12 V

Lifting Made Easy Reaching new heights: With the ECV 10 you can reach a lift height of up to 3,227 mm. Paired with a maximum lifting capacity of up to 1,000 kg, the ECV 10 high lift pallet truck provides ideal support for light and sporadic stacking applications. The compact truck dimensions enable transporting and stacking even in tight working areas and narrow aisles. Two 12 V batteries provide 125 ampere hours for long operating times, and with its built-in charger, the ECV 10 can be recharged at any standard power socket. The LED display shows the current battery charge status and the operating hours, so the operator always has everything in sight. The ECV 10 also performs well in terms of safety. The wide view between the lift profiles allows for an optimum view of the fork tips. In addition, the lowered design of the vehicle frame protects the feet of operators and third parties. The ECV 10 is also equipped with automatic speed reduction based on lift height, to keep you safe when driving. All functions can be operated with equal ease by left- and right-handed operators thanks to the optimised shape of the tiller. Maximum availability: Long battery life and built-in charger for easy charging Manoeuvrable and compact: Small front end enables excellent manoeuvrability and usage in narrow aisles Low service weight enables smooth steering Both left- and right-handed users can intuitively operate all of the driving, lifting and lowering functions Tandem load rollers provide for smooth driving behaviour on uneven ground Low steering forces when manoeuvring relieve the stress on the operator
