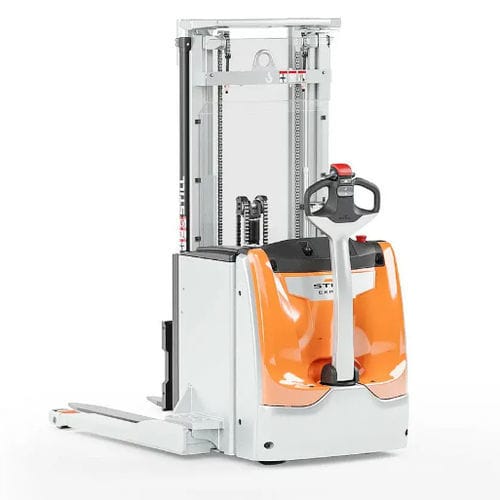

Electric stacker truck EXP series
walk-behind24 Vfor warehouse

Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 2
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 3
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 4
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 5
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 6
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 7
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 8
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 9
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 10
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 11
Electric stacker truck - EXP series  - STILL - walk-behind / 24 V / for warehouse - image - 12
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
handling, for warehouse, for lifting, storage
Other characteristics
compact, high-performance, high-lift, for heavy loads
Carrying capacity

1,400 kg, 1,600 kg, 2,000 kg
(3,086.5 lb, 3,527.4 lb, 4,409.2 lb)

Lifting height

5,102 mm
(200.87 in)

Free lift

Min.: 150 mm
(5.9 in)

Max.: 1,676 mm
(66 in)

Height of mast when raised

Min.: 2,480 mm
(97.64 in)

Max.: 6,102 mm
(240.24 in)

Overall width

1,170 mm, 1,370 mm, 1,570 mm
(46.1 in, 53.9 in, 61.8 in)

Overall length

2,073 mm, 2,109 mm
(81.6 in, 83 in)

Fork width

100 mm, 120 mm
(3.9 in, 4.7 in)

Fork length

1,150 mm
(45.28 in)

Turning circle radius

1,734 mm
(68.3 in)

Battery capacity

345 Ah

Motor power traction

2.3 kW
(3.127 hp)

Motor power lifting

3.2 kW
(4.351 hp)

Travel speed

6 km/h
(3.73 mph)

Lifting speed

Min.: 0.13 m/s
(0.427 ft/s)

Max.: 0.32 m/s
(1.05 ft/s)

Weight

1,516 kg, 1,556 kg, 1,605 kg
(3,342.21 lb, 3,430.39 lb, 3,538.42 lb)

Description

How to describe the EXP 14-20 pedestrian high lift pallet truck in three words? No need to think twice: powerful, flexible, safe. It is powerful, thanks to its enormous residual load capacity, which enables it to manoeuvre pallets weighing up to 2,000 kg quickly and reliably around the warehouse. And because of its powerful, low-maintenance motor. It is flexible thanks to its adjustable free-lift cantilever, forks, which make it easy to handle a wide variety of load carriers. Attachments can also be used with optional hydraulic functions. And what makes the EXP 14-20 particularly safe is its innovative, extra-long, highly ergonomic and sensitive tiller with OptiSpeed function. This guarantees a safe distance between your feet and the truck at all times, while also automatically adjusting the vehicle speed to the tiller angle. Combined with the Curve Speed Control assistance system, this allows you to strike the perfect balance between maximum speed on the straight and maximum safety when cornering, navigating narrow aisles and starting and braking. The colour display on the chassis also contributes to safety, efficiency and impressive goods handling. It provides all the relevant information at a glance, such as the vehicle status and battery charge level – and, thanks to meaningful symbols, this is even language-independent. Optionally, the load capacity display also shows your current load. So what are you waiting for? With the EXP 14-20, nothing stands in the way of an efficient, flexible and safe flow of goods, from transporting loads in the storage area to operating shelves. Maximum flexibility: different pallet types and accessory equipment can be used
