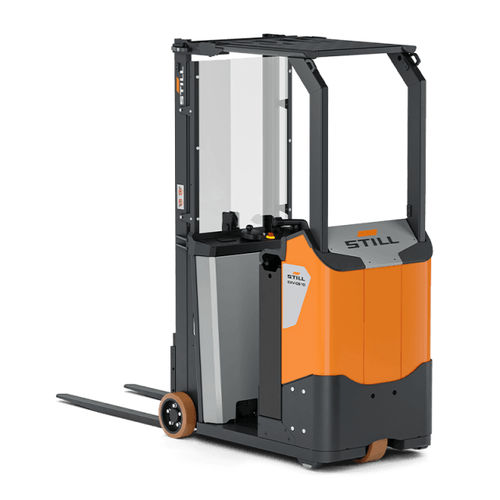

Electric forklift truck SXV-CB 10
stand-onfor warehousehandling

electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
stand-on
Applications
handling, for warehouse, precision, order-picking
Other characteristics
compact
Carrying capacity

1,000 kg
(2,204.6 lb)

Lifting height

5,380 mm
(211.81 in)

Overall width

828 mm
(32.6 in)

Overall length

2,604 mm
(102.5 in)

Load center distance

600 mm
(23.6 in)

Weight without load

2,590 kg
(5,710 lb)

Axle loading with maximum load front

910 kg
(2,006.2 lb)

Axle loading with maximum load rear

2,680 kg
(5,908.4 lb)

Axle loading without load front

1,560 kg
(3,439.2 lb)

Axle loading without load rear

1,030 kg
(2,270.8 lb)

Height to top of overhead guard

1,995 mm
(78.5 in)

Length to fork face

1,454 mm
(57.2 in)

Fork carriage width

650 mm
(25.6 in)

Ground clearance at center of wheelbase with load

60 mm
(2.4 in)

Turning circle radius

1,320 mm
(52 in)

Travel speed

12 km/h
(7.5 mph)

Lifting speed

0.3 m/s, 0.4 m/s
(0.984 ft/s, 1.312 ft/s)

Lowering speed

0.2 m/s, 0.3 m/s
(0.656 ft/s, 0.984 ft/s)

Gradeability

8 %, 15 %

Rated output

3 kW
(4.1 hp)

Noise level

70 dB

Description

Flexibility meets innovation The SXV-CB is a reliable all-rounder for a range of applications. The electric forklift truck is extremely compact and particularly stable when cornering thanks to excellent weight distribution and automatic speed restriction. With its narrow aisle width and small turning radius, it is also extremely manoeuvrable in the tightest of spaces. It can effortlessly lift up to 1,000 kilograms on its cantilever forks. The SXV-CB is user-friendly, and, thanks to its speed-dependant steering, can be controlled with precision and efficiency with minimal effort. There is also the option of integrating a second control panel for added convenience when reversing. This facilitates forward and reverse driving with left- and right-handed operation, without having to turn your body too far. Speaking of comfort: Drivers love the SXV-CB for its ergonomics, which guarantee fatigue-free load handling. This is ensured by the comfortable stand-on workplace which offers plenty of space to move, the upholstered backrest, the low step height of 120 mm on each side and the ergonomic steering and operation without needing to alter your hand position. The unrestricted view of the warehouse and load provide a high level of working comfort, as well as safety. After all, where the driver effortlessly has everything in view, driver, surroundings, load and vehicle are kept safe. The robust overhead guard also contributes to safety, while the optionally configurable warning light aids visibility in warehouse traffic.
