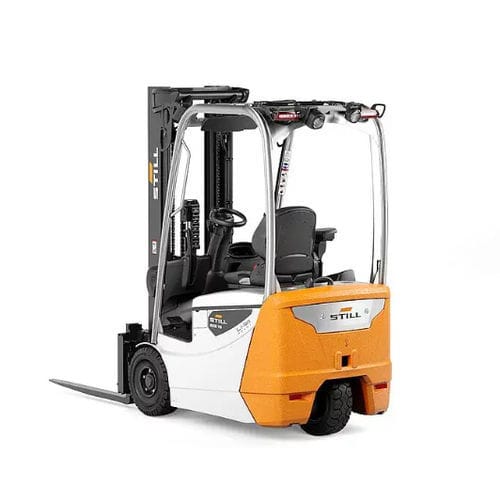

Electric forklift RXE series
ride-onnarrow-aislepallet

Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 2
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 3
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 4
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 5
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 6
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 7
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 8
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 9
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 10
Electric forklift - RXE series  - STILL - ride-on / narrow-aisle / pallet - image - 11
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
loading, transport, unloading, storage, industrial, for warehouse, narrow-aisle, precision, pallet, for trucks
Other characteristics
counterbalanced, compact, high-performance, 3-wheel, increased safety, eco-friendly
Carrying capacity

Min.: 1,000 kg
(2,204.6 lb)

Max.: 1,600 kg
(3,527.4 lb)

Lifting height

5,610 mm, 6,060 mm, 6,810 mm
(220.87 in, 238.58 in, 268.11 in)

Overall width

990 mm
(39 in)

Overall length

2,384 mm, 2,546 mm, 2,600 mm, 2,635 mm
(93.9 in, 100.2 in, 102.4 in, 103.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,455 kg, 2,717 kg, 2,867 kg, 3,022 kg
(5,412.3 lb, 5,990 lb, 6,320.7 lb, 6,662.4 lb)

Axle loading with maximum load front

2,953 kg, 3,459 kg, 3,803 kg, 3,950 kg
(6,510.3 lb, 7,625.8 lb, 8,384.2 lb, 8,708.3 lb)

Axle loading with maximum load rear

502 kg, 557 kg, 563 kg, 672 kg
(1,106.7 lb, 1,228 lb, 1,241.2 lb, 1,481.5 lb)

Axle loading without load front

1,075 kg, 1,181 kg, 1,200 kg, 1,226 kg
(2,370 lb, 2,603.7 lb, 2,645.5 lb, 2,702.9 lb)

Axle loading without load rear

1,380 kg, 1,536 kg, 1,641 kg, 1,822 kg
(3,042.4 lb, 3,386.3 lb, 3,617.8 lb, 4,016.8 lb)

Track width front

840 mm
(33.1 in)

Height of mast when lowered

2,155 mm
(84.8 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

3,732 mm, 3,811 mm
(146.9 in, 150 in)

Height to top of overhead guard

1,980 mm, 2,050 mm
(78 in, 80.7 in)

Seat height

1,045 mm
(41.1 in)

Fork carriage width

980 mm
(38.6 in)

Ground clearance under mast with load

84 mm
(3.3 in)

Ground clearance at center of wheelbase with load

94 mm
(3.7 in)

Turning circle radius

1,229 mm, 1,391 mm, 1,445 mm, 1,480 mm
(48.4 in, 54.8 in, 56.9 in, 58.3 in)

Travel speed

12 km/h
(7.5 mph)

Lifting speed

Min.: 0.32 m/s
(1.05 ft/s)

Max.: 0.52 m/s
(1.706 ft/s)

Lowering speed

0.51 m/s
(1.673 ft/s)

Rated drawbar pull

Min.: 1,676 N

Max.: 7,062 N

Gradeability

Min.: 4 %

Max.: 31 %

Rated output

4.9 kW
(6.7 hp)

Maximum operating pressure

170 bar, 200 bar, 220 bar
(2,465.6 psi, 2,900.8 psi, 3,190.8 psi)

Oil flow

18 l/min, 20 l/min, 23 l/min
(4.8 us gal/min, 5.3 us gal/min, 6.1 us gal/min)

Noise level

60 dB

Description

Great in the smallest of spaces Turn it any way you want, the RXE 10–16C simply fits. Always. The youngest and smallest member of the electrifying STILL electric forklift truck family is one of the greatest in terms of performance: compact as it is, it shines with a perfect balance of driving comfort, manoeuvrability and safety – even when things get really tight. Be it in HGVs, containers or narrow aisles, the RXE 10–16C is incomparably efficient and agile in the smallest of spaces thanks to its compact dimensions and sensitive steering. And that is precisely why it is so versatile. Whether it is in the food industry, at logistics service providers, in production supply or in joint warehouses of large retailers, the compact three-wheel counterbalanced forklift truck inspires as an efficient helper for loading and unloading HGVs or containers as well as for transporting pallets in the warehouse. With a top speed of 12.5 km/h, it gets a lot done very quickly. And to ensure that not a single moment of its electrifying dynamics is lost for safety reasons, it is equipped with the proven Curve Speed Control as standard. This keeps you safely on track at all times – even in the tightest of curves. So when it comes to moving 1.0 to 1.6 tonnes in a space-saving way, the RXE 10-16C is the perfect choice! With its wide range of equipment options and assistance systems, it is also an attractive upgrade from the high lift stackers, with increased comfort and added safety. All this makes it the perfect successor to the legendary STILL RX 50, one of the best-selling electric forklift trucks in its class ever. Proof that the RXE 10–16C fits the bill. Always.
