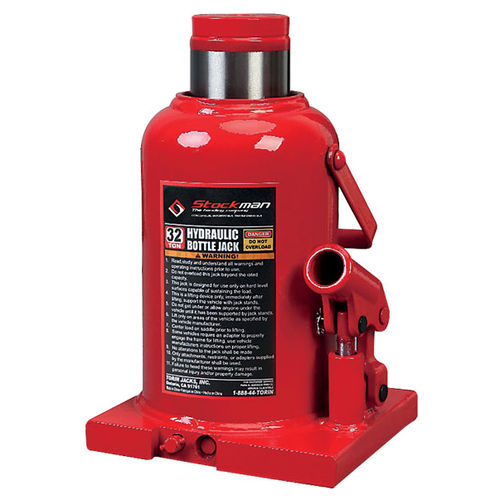

Bottle jack HB T serieshydraulic3 ton6 tons
Add to favorites
Compare this product
Characteristics
- Type
- bottle
- Technology
- hydraulic
- Maximum load
- 20 tons, 6 tons, 32 tons, 3 ton, 12 tons
- Height
190 mm, 210 mm, 230 mm, 240 mm, 260 mm
(7 in, 8 in, 9 in, 9 in, 10 in)- Stroke
118 mm, 125 mm, 150 mm, 160 mm
(4.65 in, 4.92 in, 5.91 in, 6.3 in)- Weight
2.95 kg, 3.7 kg, 6.5 kg, 9.7 kg, 17.8 kg
(6.5 lb, 8.16 lb, 14.33 lb, 21.38 lb, 39.24 lb)
Description
Patented bottle jack equipped with a wide base available in 5 different models depending on the desired capacity (3 to 32 tons).
• Heat-treated cylinder rod and screws
• Built-in overload valve
• Welded base (not screwed) to prevent the risk of leakage
• Wide base increases stability and safety
• An extension screw comes standard (except on HB320T model)
• Carrying handle included on models HB120T, HB200T and HB320T
• Download the product specifications for further technical information
