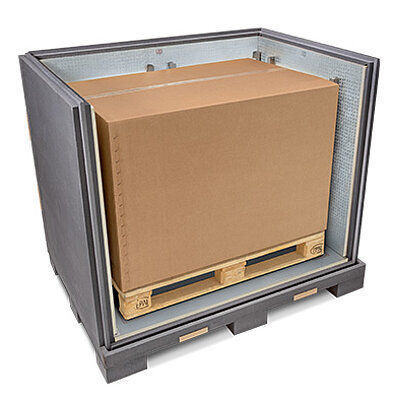

Extruded polystyrene insulated container

Overview
The Pallet Shipper XXL provides passive temperature-controlled transportation of a complete Euro pallet. It maintains goods at 2–8 °C for up to 120 hours even with external temperatures from -20 °C to +60 °C. The all-season packout and unified conditioning of cooling elements allow year-round use and storage in conventional cold rooms without loss of cooling capacity, enabling advance preparation and handling of extended stopovers.

Features

• Rapid single-person assembly in under 10 minutes
• Designed for shipping Euro pallets
• All-season packout (no seasonal change required)
• No defrosting of the cooling medium required
• Reliable performance across outside temperatures from -20 °C to +60 °C
• Maintains temperature stability for up to 120 hours

Technical specifications

• Material: XPS
• Outer dimensions: 1520 x 1120 x 1360 mm
• Payload capacity (internal dimensions): 1210 x 810 x 1030 mm
• Dimensional weight: 386 kg
• Net weight: 170 kg (including cooling medium)
• Temperature range (product): 2 - 8 °C
• Hold time: 120 h
• Outside temperature tolerance: min. -20 °C to max. +60 °C

Characteristics / specifications

• Product: Pallet Shipper XXL (isothermal pallet container)
• Function: passive temperature-controlled transport for a full Euro pallet
• Temperature maintenance: 2–8 °C up to 120 h
• Operates at extreme outside temperatures (-20 °C to +60 °C)
• Insulation material: XPS
• Outer dimensions: 1520 x 1120 x 1360 mm
• Internal usable dimensions: 1210 x 810 x 1030 mm
• Total / net weight: 386 kg / 170 kg (cooling elements included)
• Can be stored in cold rooms without loss of cooling performance
• Assembly: single person in approx. 10 minutes
