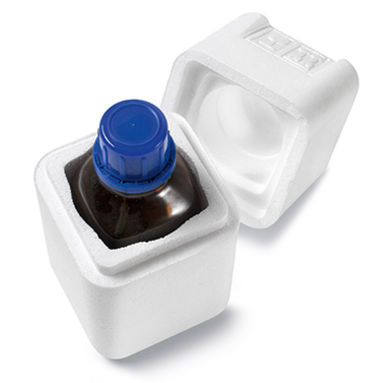

Insulating packaging S-Box

polystyrenesquareround

Overview
Protective packaging for plastic and glass bottles with hazardous contents. Designed to prevent damage to transported bottles and to contain leaks by using chemical-resistant materials.

Material & purpose
Made from EPS (expanded polystyrene). EPS is exceptionally lightweight, impact-resistant and resistant to a wide range of chemicals. Its insulating properties make it suitable for shipping temperature-sensitive hazardous substances.

Range & approvals
Standard range comprises 10 S-Box systems in different sizes. All safety boxes have been inspected and approved by the German Federal Institute for Materials Research and Testing (BAM). Systems are available for single or multiple bottle configurations.

Table: Safety Box Systems
Safety Box System — Outer Dimensions — Bottle Diameter — Bottle Height incl. Closure
S-Box 1x 100ml with lid — 155 x 80 x 80 mm — 50 mm (round) or 48 mm (square) — 115 mm
S-Box 1x 250ml with lid — 191 x 97 x 97 mm — 70 mm (round) or 64 mm (square) — 161 mm
S-Box 1x 500ml with lid — 230 x 116 x 116 mm — 84 mm (round) or 78 mm (square) — 182 mm
S-Box 1x 1000ml with lid — 300 x 135 x 135 mm — 104 mm (round) or 94 mm (square) — 225 mm
S-Box 1x 2500ml with lid — 380 x 187 x 187 mm — 139 mm (round) — 300 mm
S-Box 6x 100ml with lid — 205 x 143 x 159 mm — 50 mm (round) or 48 mm (square) — 115 mm
S-Box 6x 250ml with lid — 260 x 190 x 180 mm — 70 mm (round) or 64 mm (square) — 161 mm
S-Box 6x 500ml with lid — 315 x 230 x 215 mm — 84 mm (round) or 78 mm (square) — 182 mm
S-Box 6x 1000ml with lid — 400 x 280 x 300 mm — 104 mm (round) or 94 mm (square) — 225 mm
S-Box 4x 2500ml with lid — 380 x 360 x 360 mm — 139 mm (round) — 300 mm

Characteristics / technical specifications

• Material: EPS (styrofoam, expanded polystyrene)
• Applications: Protective and insulating packaging for plastic and glass bottles containing hazardous or temperature-sensitive substances
• Chemical resistance: resistant against a wide array of substances to limit contamination in case of leaks
• Physical properties: exceptionally lightweight, impact-resistant
• Range: 10 standard S-Box systems covering single and multi-bottle configurations
• Approvals: inspected and approved by the German Federal Institute for Materials Research and Testing (BAM)
• Representative outer dimensions and bottle capacity/compatibility listed in the table above
