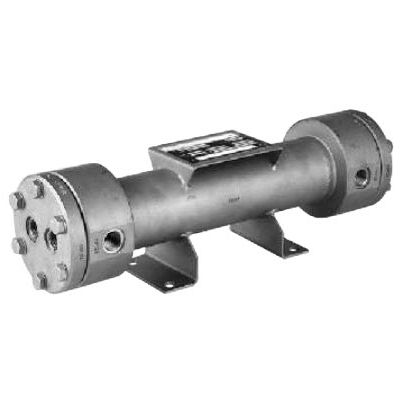

Shell and tube heat exchanger HSD series
liquid/liquidstainless steelfor the petrochemical industry

Add to favorites

Compare this product

Go to the Stramek website for more information

Characteristics

Type

shell and tube

Fluid

liquid/liquid

Material

stainless steel

Applications

for the petrochemical industry, for the chemical industry

Power

Max.: 36,000 W
(122,837.04 BTU/h)

Min.: 0 W
(0 BTU/h)

Operating pressure

16 bar, 130 bar
(232.06 psi, 1,885.49 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: 30 °C
(86 °F)

Description

Heat exchangers of the HSD range areused to cool process/barrier fluids inseal supply circuits.Designed as a tubular heat exchangerwith integrated guide plates, theprocess/barrier medium is directedthrough the shell of the HSDand the cooling medium through thetubes.Circulation in accordance with API 682/ ISO 21 049: Plan 21, Plan 22, Plan23, Plan 41
