Locating ring ACFS series

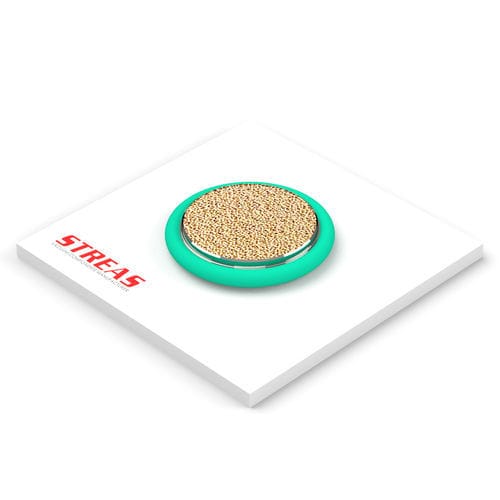

Centering ring with sintered filter designed for KF connections, ensuring flange centering and sealing via an O-ring. The component is suitable for industrial applications thanks to its resistance to corrosion and high temperatures.

Available items

• ACFS10KF-4/FKM/B — DN 10: A = 12 mm (0.472 in); B = 3,9 mm (0.154 in)
• ACFS16KF-4/FKM/B — DN 16: A = 17 mm (0.669 in); B = 3,9 mm (0.154 in)
• ACFS25KF-4/FKM/B — DN 25: A = 26 mm (1.024 in); B = 3,9 mm (0.154 in)
• ACFS40KF-4/FKM/B — DN 40: A = 41 mm (1.614 in); B = 3,9 mm (0.154 in)
• ACFS50KF-4/FKM/B — DN 50: A = 52 mm (2.047 in); B = 3,9 mm (0.154 in)

Extended description
Sealing element composed of an AISI 304 ring, a sintered bronze filter and a Fluoroelastomer (FKM) gasket. The ring ensures flange centering and acts as a support for the O-ring which provides the seal. Sintered bronze filters have high particle retention capacity, are easy to clean and can be reused multiple times. They are resistant to corrosion and high temperatures, making them ideal for industrial applications.

Features / Technical specifications

• Line: KF
• Product type: Seals (sealing)
• Materials: ring AISI 304; sintered bronze filter; gasket in FKM (Viton)
• Finish: Natural
• Function: flange centering and support for O-ring to ensure sealing
• Filter properties: high particle retention capacity, easily cleanable and reusable
• Resistances: resistance to corrosion and high temperatures
