Locating ring ACRM series

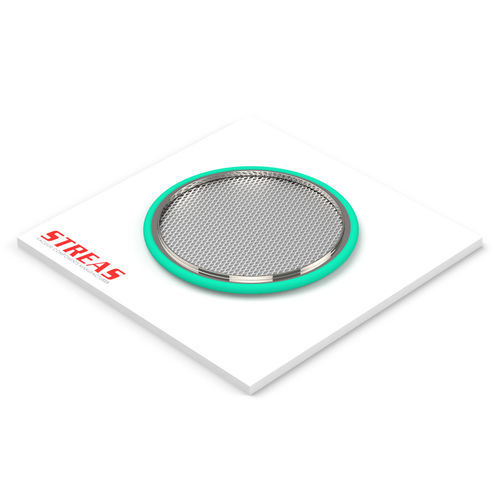

Centering ring for flanges with metal mesh and O‑ring designed for ISO connections (ISO-K, ISO-F, ISO-Q). Ensures flange centering, sealing with O‑ring and filtration via the metal mesh.

Available items

• ACRM63ISO-4/4/FKM — Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 63; A: 70 mm (2.756 in); B: 3.9 mm (0.154 in); Availability: High
• ACRM80ISO-4/4/FKM — Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 80; A: 83 mm (3.268 in); B: 3.9 mm (0.154 in); Availability: Medium
• ACRM100ISO-4/4/FKM — Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 100; A: 102 mm (4.016 in); B: 3.9 mm (0.154 in); Availability: High
• ACRM160ISO-4/4/FKM — Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 160; A: 153 mm (6.024 in); B: 3.9 mm (0.154 in); Availability: High
• ACRM200ISO-4/4/FKM — Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 200; A: 213 mm (8.386 in); B: 3.9 mm (0.154 in); Availability: Low
• ACRM250ISO-4/4/FKM — Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 250; A: 261 mm (10.276 in); B: 3.9 mm (0.154 in); Availability: Low

Features / technical specifications

• Composition: inner ring, gasket and metal mesh
• Materials: ring and mesh in AISI 304; gaskets available in fluoroelastomer (FKM, Viton)
• Compatible lines: ISO-K, ISO-F, ISO-Q
• Line type: ISO
• Product type: Sealing element
• Finish: Natural
• Functions: flange centering, O‑ring support for sealing, filtration via metal mesh
