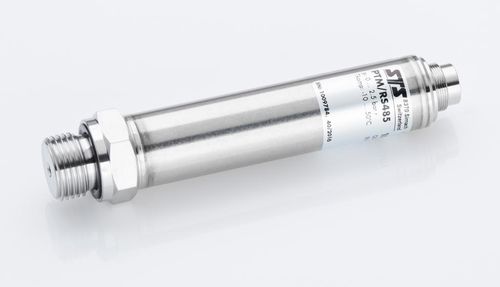

Relative pressure transmitter PTM/RS485
absolutemembranepiezoresistive

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute
Technology
membrane, piezoresistive
Output signal
digital, RS485
Mounting
threaded, flush diaphragm
Other characteristics
temperature-compensated, stainless steel, precision, process, RoHS, IP67, for the petrochemical industry, for engines, silicone oil-filled, with temperature sensor, CE, with long-term stability, programmable, fast response time, for medical applications, fully-welded, for pharmaceutical applications, high-overpressure, for liquids and gases, high-resolution, custom, with selectable measurement range, for marine applications, rugged, for nuclear power plants, with pulse-snubber, titanium, for railway applications
Process temperature

Max.: 150 °C (302 °F)

Min.: -40 °C (-40 °F)

Pressure range

Max.: 1,000,000 mbar (14,503.77 psi)

Min.: 100 mbar (1.45 psi)

Description

- High flexibility due to scalalbe pressure range - Digital (RS485) and analogue (4-20mA) output signal in one sensor - Available as multi-parameter sensor (pressure & temperature) - Fast customization thanks to modular product design - Stainless steel and titanium version for use in acidic or otherwise aggressive media Pressure measuring range: 100 mbar … 1000 bar Adjustable 1:4 of the nominal range within -5% to +105% (analog output) Accuracy: ≤ ± 0.25 / 0.10 % FS Temperature measuring range: -25 … 85°C Operating temperature: -25 … 85°C Process temperature: -40 … 150°C 2 Output signals (p & T): 4 … 20 mA Interface: RS485 (Modbus RTU) Materials: Stainless steel, Titanium
