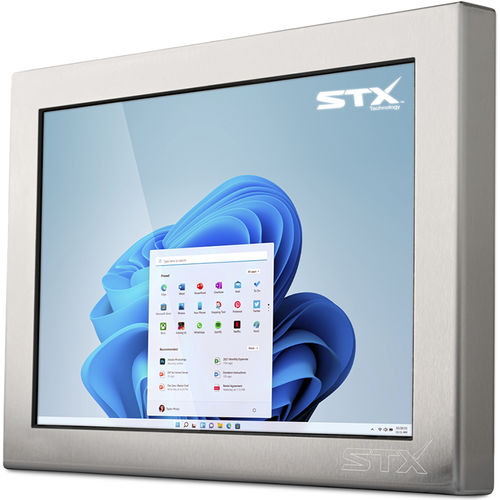

Stainless steel panel PC X7200 seriesLCDPCAP capacitive touch screencapacitive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, PCAP capacitive touch screen, capacitive touch screen, resistive touch screen
- Display size
- 15", 19", 17", 12.1", 8.4", 10.1", 10.4"
- Resolution
- 1024 x 768, 1280 x 1024, 800 x 600
- Processor
- Intel® Celeron® 6305E, Intel® Core™ i5-1135G7, Intel® Core™ i7-1165G7, Rockchip RK3588S
- Applications
- industrial
- Other characteristics
- wireless, fanless, all-in-one, stainless steel, wide temperature range, high-performance, high-brightness, Windows, VESA mounting, wall-mounted, Android, Windows 10, Windows 11
Description
Model Options
All-in-One (AIO) or Touch Monitor
Touch Type
Resisitive Touch | Projected Capacitive Touch
Display Sizes
8.4" | 10.4" | 12.1" | 15" | 17" | 19"
Display Brightness
400 nits | 600 nits High Brightness | 1000 nits High Brightness
CPU
Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S
Memory
8GB | 16GB | 24GB | 40GB
Hard Drive
120GB | 256GB | 512GB | 1TB
Operating systems
Windows 10 LTSC | Windows 11 Professional | Linux | Android 13
Keyboard
Optional
Video
Mini DP | HDMI Output
Network
2 Ethernet | 3 Ethernet
Optional WiFi 6 Dual Band | Bluetooth
Optional 3G/4G GPS
Optional CANBus
Optional RS485
Optional RS422
USB
4 USB 3.0 | Optional additional 2x USB 2.0
RS232
Optional upto 6 RS232
Power Input
10~30VDC
Mounting
Panel Mount | VESA Mount
Material Grade
Stainless Steel 304 | Stainless Steel 316
Finish
Brushed | Highly Polished | Electro Polished | Flat (BA) | Matte Black | Safety Yellow | Safety Orange
Model Sizes
X7208 | 8.4" | 800x600 (4:3)
X7210 | 10.4"| 1024x768 (4:3)
X7212 | 12.1"| 1024x768 (4:3)
X7215 | 15" | 1024x768 (4:3)
X7217 | 17" | 1280x1024 (5:4)
X7219 | 19" | 1280x1024 (5:4)
