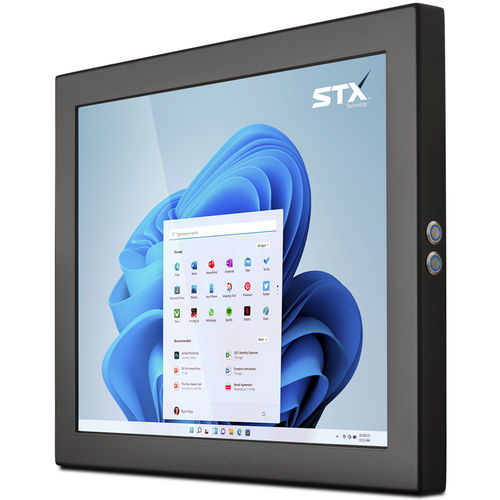

LCD panel PC X7300 series
PCAP capacitive touch screencapacitive touch screenresistive touch screen

LCD panel PC - X7300 series - STX Technology - PCAP capacitive touch screen / capacitive touch screen / resistive touch screen
LCD panel PC - X7300 series - STX Technology - PCAP capacitive touch screen / capacitive touch screen / resistive touch screen
LCD panel PC - X7300 series - STX Technology - PCAP capacitive touch screen / capacitive touch screen / resistive touch screen - image - 2
LCD panel PC - X7300 series - STX Technology - PCAP capacitive touch screen / capacitive touch screen / resistive touch screen - image - 3
Add to favorites
Compare this product

Characteristics

Screen type
LCD, PCAP capacitive touch screen, capacitive touch screen, resistive touch screen, multitouch screen
Display size
15", 19", 17", 12.1", 18.5", 24", 8.4", 10.4", 13.3"
Resolution
1024 x 768, 1280 x 1024, 800 x 600
Processor
Intel® Celeron® 6305E, Intel® Core™ i5-1135G7, Intel® Core™ i7-1165G7, Rockchip RK3588S
Operating system
Android, Windows 10, Windows 11 Pro
Construction
metal chassis, fanless, aluminum frame
Mounting
wall-mounted
Applications
industrial, for IoT applications, for the food industry
Integrated peripheral
with keyboard
Other characteristics
wireless, all-in-one, wide temperature range, high-performance, high-brightness

Description

Model Options All-in-One (AIO) or Touch Monitor Touch Type Resisitive Touch | Projected Capacitive Touch Display Sizes 8.4" | 10.4" | 12.1" | 15" | 17" | 19" Display Brightness 400 nits | 600 nits High Brightness | 1000 nits High Brightness CPU Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S Memory 8GB | 16GB | 24GB | 40GB Hard Drive 120GB | 256GB | 512GB | 1TB Operating systems Windows 10 LTSC | Windows 11 Professional | Linux | Android 13 Keyboard Optional Video Mini DP | HDMI Output Network 2 Ethernet | 3 Ethernet Optional WiFi 6 Dual Band | Bluetooth Optional 3G/4G GPS Optional CANBus Optional RS485 Optional RS422 USB 4 USB 3.0 | Optional additional 2x USB 2.0 RS232 Optional upto 6 RS232 Power Input 10~30VDC Mounting Panel Mount | VESA Mount Material Grade Aluminium Finish Matte Black Model Sizes X7308 | 8.4" | 800x600 (4:3) X7310 | 10.4"| 1024x768 (4:3) X7312 | 12.1"| 1024x768 (4:3) X7315 | 15" | 1024x768 (4:3) X7317 | 17" | 1280x1024 (5:4) X7319 | 19" | 1280x1024 (5:4)
