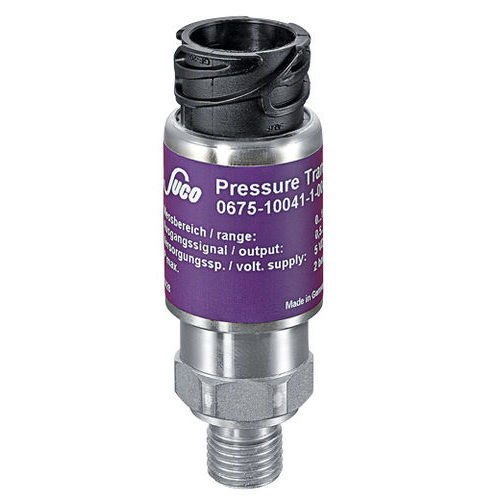

Vacuum pressure transmitter 0675

piezoresistiveanalogthreaded

Pressure transmitters especially for low pressures, including vacuum applications Long life time even under high pressure change rates Housing and wetted parts are made of stainless Steel 1.4404 providing excellent media compatibility when used in seawater, Chemical and process technology applications The highly-sensitive piezo-resistive sensor in the measuring cell fïlled with oil guarantees high level of accuracy, repeatability and long-term stability The availability of différent sealing materials enables deployment in a broad température range and with a diverse array of media Technical details Output signal: - 0.5 - 4.5 V ratiometric Supply voltage Uv+: - 5 VDC ±10 % max. 6,5 VDC Permissible load/ - apparent ohmic résistance: - > 4.7 kQ Idle power consumption: approx. 5 mA Mechanical life expectancy: - 10,000,000 pulsations at rise rates to 1,000 bar/s at pnom Permitted pressure change rate: - 100 MO (35 VDC) Response time 10 - 90 %: - < 2 ms Vibration résistance: - 20 g at 4 - 2000 Hz sine wave; DIN EN 60068-2-6 Shock résistance: - half sine wave 500 m/s2; 11 ms; DIN EN 60068-2-27 Protection class - Refer to the electrical connections Electromagnetic compatibility: - EMC - 2014/30/EU, - EN - 61000-6-2:2005, - EN - 61000-6-3:2007
