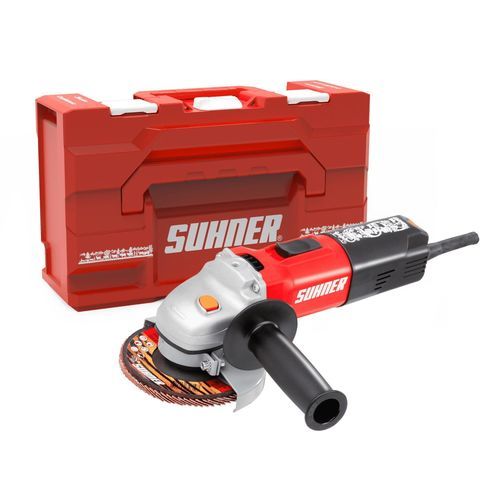

Electric portable grinder UWG 10-R

industrialanglecompact

Product overview
The SUHNER UWG 10-R is a compact angle grinder designed for professional cutting, grinding and surface preparation. It combines low weight and responsive handling with variable speed control to deliver precise, clean results in continuous daily use.

Main functions & use

• Applications: cutting, rough grinding, finishing grinding, rust removal, brushing and polishing
• Precise cutting and grinding for clean edges and surfaces in industrial and professional workshops
• Lightweight design for controlled handling during extended operations

Included / accessory items (page listing)

• Transport case
• Guard for rough grinding and grinding
• Guard for cutting applications
• Side handle (mountable in three positions)
• Clamping flange
• Clamping nut

Key functions & safety features

• Electronic variable speed control (4,200–10,000 rpm)
• Side handle adjustable in three positions for ergonomic operation
• Angle head adjustable in 90° steps
• Soft start and thermal protection
• Undervoltage / restart protection (no automatic restart after power loss)
• Overload protection and Automatic Stop motor protection
• Exhaust air directed 45° away from the user
• On/off switch positioned for ergonomic control (front switch in insulated housing for UWG)

Variants

• Connection options: DE/EU plug
• Connection options: CH plug

Shipping & availability

• Delivery time: 1–2 business days
• Collection: Available in Lupfig (CH) or Bad Säckingen (DE)

Care / maintenance instructions

• Keep clean: Regularly clean the tool and ventilation slots to ensure cooling and consistent performance
• Check carbon brushes: Inspect after approx. 150 operating hours and replace if necessary
• Service interval: Have motor housing cleaned and gearbox grease renewed as required
• Safety inspection: Electrical safety and protective insulation must be checked regularly by a qualified electrical service workshop
• When working with heavy metal dust: use stationary extraction, blow out ventilation slots frequently and use upstream residual current device (RCD)

Product highlights / special edition
This is the 111th anniversary edition of the UWG 10-R, delivered with dedicated anniversary design elements and a multilingual certificate; core technology and specifications remain consistent with the proven UWG platform.

Technical specifications

• Continuous power: 1050 W
• Variable speed: 4,200 - 10,000 rpm
• Disc diameter: 125 mm
• Drive type: Electric
• Tool holder: M14
• Cable length: 3 m
• Mains voltage: 230 V
• Protection class: II
• Weight: 1.9 kg
• Sound pressure level: 84 dB(A)
