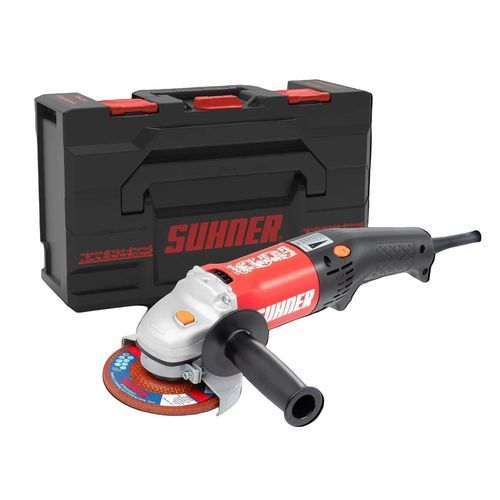

Electric portable grinder UWK 10-R

industrialanglecompact

Product description
The SUHNER UWK 10-R angle grinder is built for professional cutting and grinding tasks. It offers a variable speed range, a compact 125 mm disc size and a motor dimensioned for sustained material removal. The tool is based on the proven UWK platform and features a robust mechanical design suitable for continuous use in industrial environments.

Variants

• DE/EU plug
• CH plug

Applications

• Cutting
• Rough material removal
• Grinding and finishing
• Rust removal
• Brushing
• Polishing

Features / Accessories

• Accessories included or available: carrying case; guard for rough grinding; guard for cutting; side handle; clamping flange; clamping nut
• Functions: side handle mountable in three positions; electronic speed control (variable speed); angle head adjustable in 90° steps; auto-stop carbon brushes (motor protection); soft start and thermal protection; undervoltage/restart protection; exhaust air directed 45° away from the user
• Switch position: rear switch in handle (UWK 10-R)

Care instructions

• Keep clean: clean the machine and ventilation slots regularly to ensure cooling and consistent performance.
• Check carbon brushes: inspect after approx. 150 operating hours and replace if required.
• Service interval: have motor housing cleaned and gearbox grease renewed at regular intervals.
• Safety inspection: electrical safety inspections must be carried out exclusively by a qualified electrical service workshop.
• With heavy metal dust: use a stationary extraction system; blow out ventilation slots frequently; use an upstream residual current device (RCD).

Shipping / Collection

• Delivery time: 1–2 business days
• Collection: available in Lupfig (CH) or Bad Säckingen (DE)

Technical data
Variable speed: 4,200–10,000 rpm
Drive type: Electric
Maximum power: 1530 W
Disc diameter: 125 mm
Weight: 2.6 kg
Mains voltage: 230 V
Cable length: 3 m
Tool holder: M14
Protection class: II (double insulated)
Sound pressure level: 89 dB(A)

Datasheet / Documents
Datasheet (PDF) available for the UWK 10-R.

Edition info
111th anniversary edition: special design and multilingual certificate. The edition is design-related; technical specifications correspond to the standard UWK 10-R platform.

Technical specifications

• Model: UWK 10-R (111th anniversary edition)
• Variable speed range: 4,200–10,000 rpm
• Drive type: Electric
• Disc diameter: 125 mm
• Weight: approx. 2.6 kg
• Cable length: 3 m
• Tool holder: M14
• Protection class: II
• Safety features: auto-stop carbon brushes, soft start, thermal protection, undervoltage/restart protection
