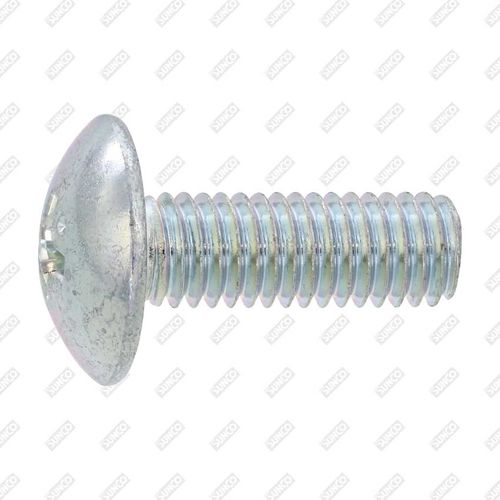

Truss-head screw 00-0003

fasteningPhillipssteel

■Standard: Complies with JIS B 1111 – Annex (Cross Recessed Machine Screws) [Reference] Not based on ISO 7045–7048 ■Material: Steel (e.g., SWCH10R), Stainless Steel (e.g., SUSXM7), Brass (e.g., C2700W), others ■Mechanical Properties: Equivalent to steel grade 4.8 and stainless steel grade A2-50 ＜＜Features of Machine Screws＞＞ Externally threaded fasteners with relatively small diameters and a formed head. Used in combination with tapped components or nuts. Available head types include pan head, flat head, oval head, truss head, and bind head. ＜＜Truss Head Features＞＞ A low - profile head with a wide, gently curved surface. Compared to pan heads, truss heads have a lower height and a larger diameter. Its smooth and aesthetically pleasing curvature makes it a popular choice for appearance-conscious applications. Additionally, the wider bearing surface provides increased contact with the mating part, offering a minor anti-loosening effect. ＜＜Applications＞＞ No specific application - suitable for a wide variety of uses. Designed for use with a Phillips screwdriver.
