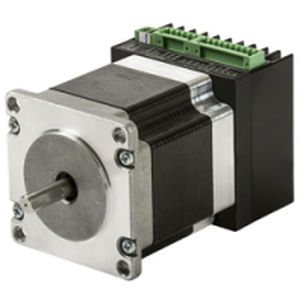

Stepper motor IST-23 series

NEMA 23IP65IP20

NEMA23 Closed Loop Stepper Motors Advantages： ●Sophisticated closed loop control enhances motor performance with no step loss ●Operates in torque, velocity, and position modes ●Efficient torque utilization optimizes motor sizing ●Integrated design minimizes component and wiring requirements ●Reduced space, installation efforts and system cost ●Fieldbus: CANopen, EtherCAT ●Synchronized control of coordinated motion profiles ●Reduced machine complexity, as stepIM can function as distributed I/O points ●Up to IP65 protection class ●Maintenance free ●CE compliance NEMA23 Closed-Loop Stepper Motors: 1.IP Catings:IP20/IP65; 2.Communication:CANopen/EtherCAT; 3.Input voltage:14-48/14-60(VDC); 4.I/Os:Digital (IP20): 4 x Input, 2 x output Digital (IP65): 3 x Input, 1 x output Analog 1 x Differential Input 5.Motor feedback:12 bit absolute encoder Frame size:56.4mm
