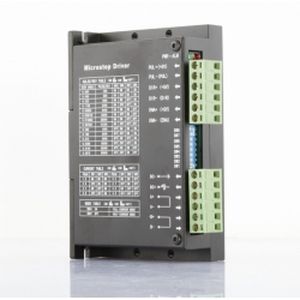

DC servo-drive DM542H

for stepper motors80 V20 V

Product Abstract: The M542H Stepper Motor Driver is a excellent microstepping driver based on pure-sine current control technology.Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors. Product Description The M542H Stepper Motor Driver is a excellent performance microstepping based on pure-sine current control.With above technology and the self-adjustment function(self-adjust current control) to various motors, keep the driven motors run with low noise,less heating, smoother movement and better performances at higher speed than other drives in the markets.it is adapt to driving 2,3,4 phases hybrid stepper motors. M542H Stepper Motor Driver Features High Efficiency Excellent high speed performance DC20-80V,Max 100V Max output 4.5A Self-adjustment function Pure-sine current control 300KHz Max Pulse input frequence Suitable for TTL and optically isolated input Auto idle current reduction 15 steps resolutions in decimal binary, max 51,200 steps/rev Suitable for 2 ,3, 4 phases motors Support PUL/DIR and CW/CCW modes Short-voltage protection, over-voltage protection, over-current protection M542H Stepper Motor Driver Specifications Electrical Specifications (Tj : 25oC~77oC)
