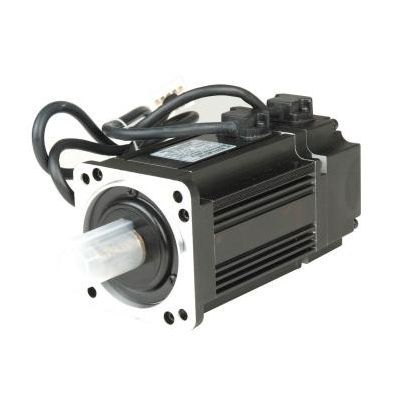

AC servomotor SWS13150CCstepper220 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- stepper
- Voltage
- 220 V
- Power
1.5 kW
(2.039 hp)- Torque
Min.: 6 Nm
(4.4254 ft.lb)Max.: 18 Nm
(13.2761 ft.lb)- Rotational speed
2,500 rpm
(15,707.96 rad.min-1)
Description
Product Description
1.5KW,AC220V Middle Inertia Servo Motors,SWS13150CC Middle Inertia Servo Motors manufacturer.
Model No.
SWS13150CC
Rated speed
2500r/min
Compatible Servo Driver
SW7AA030M
Flange Specification(mm)
130
Rated Power(KW)
1.5
Rated Torque(N.M.)
6.00
Maximum Torque(N.M.)
18.00
Rated Current(A)
6.00
Rated Voltage(V)
AC220
Inertia(kgm2x10-4)
12.60
Wire Quantity of Encode (PPR)
2500
Application Environment
Temperature: Work temperature: 0℃~ 40℃，storage temperature: -20℃~ 80℃
Humidity: Relative Humidity< 90%(Non-Frost)
Air: Indoor condition, less than 1000m high, non corrosive ,non flammable gas and dust and oil-mist
Shaft Diameter(mm)
22
Length(mm)
179
Weight(Kg)
8.90
