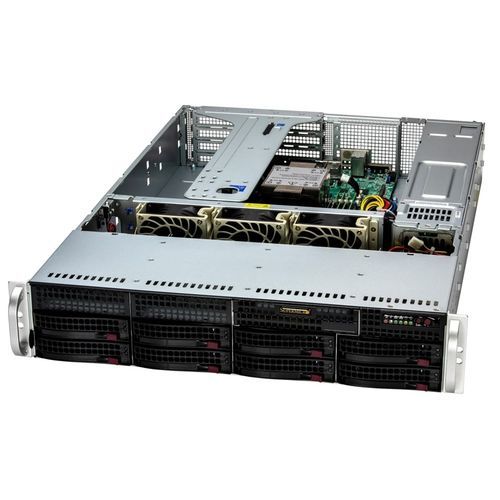

Video server SYS-522B-WR

networkGPU2U

Networking Appliance, General Purpose Computing, Web Server, Firewall Application, Data Center Optimized, Entry-Level System for SOHO and SMB, Entry GPU server, Key Features WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.; Single Intel® Xeon® 6 6700 series processor with E-cores; 8 DIMM slots supporting up to 1TB of memory (6700E series CPU).; Tool-less, Top-loading riser design support up to 5 PCIe 5.0 Expansion.; Native SATA drives supported, with option for up to 4 PCIe 5.0 NVMe drives or 8 SAS drives.; Trusted Platform Module (TPM) 2.0 onboard.; Form Factor Enclosure: 437 x 89 x 647mm (17.2" x 3.5" x 25.5") Package: 673.1 x 279.4 x 863.6mm (26.5" x 11" x 34") Processor Single Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache GPU Max GPU Count: Up to 1 double-width or 2 single-width GPUs CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 3.5" SATA drive bays Option A: Total 8 bays 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 4 front hot-swap 3.5"/2.5" SATA drive bays Option B: Total 8 bays 8 front hot-swap 3.5"/2.5" SAS* drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) Peripheral Bays: 1 slim peripheral bay Expansion Slots Default 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 FHFL slot 2 PCIe 5.0 x8 LP slots Option A* 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots
