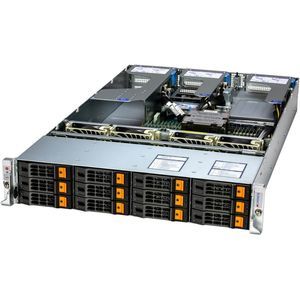

Video server AS -2025HS-TNR

networkGPU2U

Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features 10 Expansion slot options with up to 4 PCIe 5.0 x16 slots + 1 AIOM (OCP compatible 3.0) slot; 1600W Redundant Power Supplies (Titanium Level); 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot); Support up to 3 GPUs; Form Factor Enclosure: 437 x 88.9 x 803mm (17.2" x 3.5" x 31.6") Package: 605 x 263 x 1107mm (23.8" x 10.4" x 43.6") Processor Dual Socket SP5 Up to 256C/512T GPU Max GPU Count: Up to 2 double-width or 2 single-width GPUs Supported GPU: NVIDIA PCIe: H100, L40, RTX A6000, RTX A5000, RTX A2000, RTX 6000 Ada Generation, RTX 4000, L40S, L4, A40, A16, A100 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe System Memory Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM Drive Bays Configuration Default: Total 12 bays 12 front hot-swap 3.5" NVMe/SAS/SATA drive bays M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) Expansion Slots Default 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 2 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option D* 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option E* 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option F* 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
