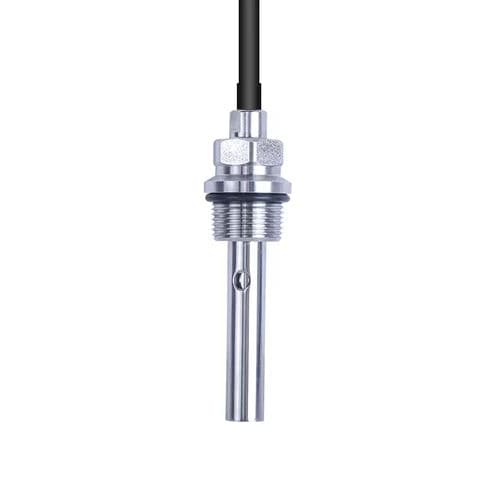

Thermal conductivity sensor SUP-TDS-7001
for water

thermal conductivity sensor
thermal conductivity sensor
thermal conductivity sensor
thermal conductivity sensor
thermal conductivity sensor
Add to favorites
Compare this product


Characteristics

Type
thermal
Applications
for water

Description

SUP-TDS-7001 a variety of functions in one: conductivity EC / TDS measurement capabilities to achieve two in one, cost-effective integrated design to support the boiler water, RO water treatment, sewage treatment, pharmaceutical industry and other liquid measurement and monitoring. Features Range: 0.01 electrode: 0.01~20us/cm 0.1 electrode: 0.1~200us/cm 1.0 electrode: 1~2000us/cm Resolution: ±1%FS Thread: G3/4 Pressure: 8 bar Product - TDS sensor, EC sensor, Resistivity sensor Model - SUP-TDS-7001 Measure range - 0.01 electrode: 0.01~20us/cm 0.1 electrode: 0.1~200us/cm 1.0 electrode: 1~2000us/cm Accuracy - ±1%FS Thread - G3/4 Pressure - 8 bar Material - 316 stainless steel Temp compensation - NTC10K (PT1000, PT100, NTC2.252K optional) Temperature range - -10-100℃ Temperature accuracy - ±3℃ Ingress protection - IP68 Introduction SUP-TDS-7001 online conductivity/resistivity sensor, an intelligent online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or Resistivity value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
