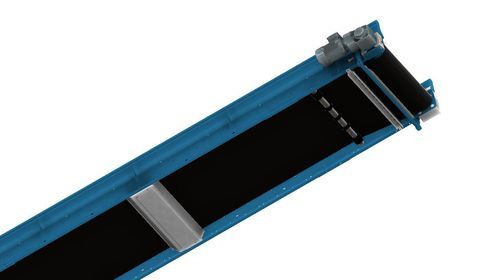

Belt conveyor FBC

scraperslidefor materials handling

Overview
The belt conveyor on slider bed type FBC is designed for handling bulk materials, primarily for waste treatment plants (selective collection, municipal waste, industrial waste). It can also be used for other heavy-duty industrial conveying applications. Its modular design allows each conveyor to be adapted according to the volume, particle size and density of the materials to be conveyed.

Main advantages

• Lightweight, compact folded-sheet chassis
• Modular design for varied configurations
• Easy to adapt in length and width
• Standardized spare parts
• Suitable for abrasive materials

Configurations and customization
The FBC conveyor can be configured individually according to application and layout: custom lengths and selectable belt widths. Parameters considered for customization include particle size, material to convey and required throughput (e.g., t/h or m³/h).

Available options

• Scraper
• Brush
• Stone trap
• Stainless steel module

Typical use
Conveying bulk materials in waste treatment facilities and other demanding industrial lines where adaptability (length, width, options) and resistance to abrasive materials are required.

Characteristics / technical specifications

• Type: Belt conveyor on slider bed (type FBC)
• Chassis: Folded sheet metal, lightweight and compact
• Design: Modular, configurable in length and width
• Available belt widths: 600 mm, 800 mm, 1000 mm, 1200 mm, 1600 mm
• Applications: Waste treatment (selective collection, municipal waste, industrial waste) and heavy-duty industrial conveying
• Material compatibility: Designed for abrasive materials
• Options: Scraper, brush, stone trap, stainless steel module
• Customization: Particle size, length, material to convey, required throughput (t/h or m³/h)
