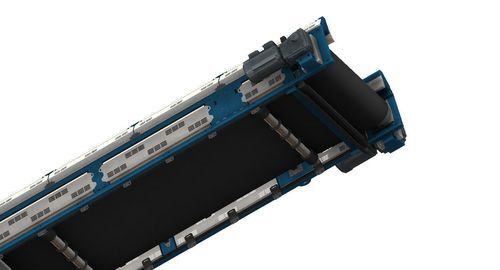

Belt conveyor VBC

scrapertroughtubular

Overview
The VBC belt conveyor is designed for bulk material handling, particularly suited to waste treatment plants and other industrial conveying applications. Its trough profile and modular tubular frame allow adaptation to constraints of volume, particle size and material density. The system accepts abrasive materials and uses standardized spare parts to simplify maintenance.

Main features

• Trough design (raised edges) to contain the product effectively and enable high-capacity inclined conveying.
• Flow optimization: trough shape centralizes and stabilizes the load, reducing losses and spillage.
• Adjustable trough depth and angle to suit the application type.
• Modular tubular frame for customized configurations.
• Standardized spare parts.
• Suitable for abrasive materials.

Available options

• Scraper
• Brush
• Stone trap
• Stainless steel module

Applications

• Handling of bulk materials (notably in waste treatment plants).
• General industrial conveying requiring a trough belt to prevent spillage and allow incline.

Technical specifications

• Modularity: configurable in length and width to meet specific requirements.
• Belt widths offered (examples): 600 mm, 800 mm, 1000 mm, 1200 mm, 1600 mm.
• Throughput customizable according to particle size and material density (t/h or m³/h).
• Accessory options: scraper, brush, stone trap, stainless steel modules for specific environments.
• Construction: tubular frame, modular design, maintenance simplified by standardized parts.
• Suitable for abrasive materials; adjustable trough depth and angle.
