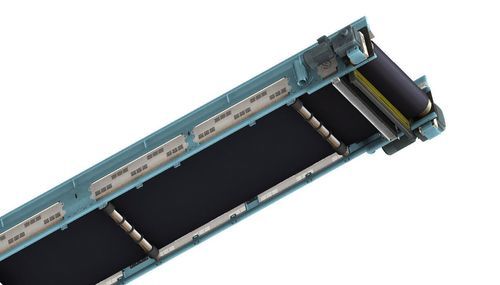

Belt conveyor RBC

tubularhandlingfor materials handling

Overview
The RBC-type modular belt conveyor is a modular conveyor system designed for handling bulk materials, primarily intended for waste treatment plants but adaptable to other industrial conveying applications.

Main benefits
Tubular frame, modular design and available options allow individual configuration of the conveyor according to volume, particle size and material density. Construction suitable for abrasive materials and standardized spare parts for easy maintenance.

Available options

• Scraper
• Brush
• Stone trap
• Stainless steel module

Customization and information required for quotation
The conveyor is configurable in length and width. To size/quote a solution, provide the following: particle size, length, belt width, material to convey, required capacity (t/h or m³/h) and installation constraints.

Technical characteristics / specifications

• Type: modular belt conveyor (RBC type)
• Main use: handling of bulk materials (e.g., waste treatment)
• Frame: tubular
• Design: modular, configurable in length and width
• Available belt widths (selection): 600mm, 800mm, 1000mm, 1200mm, 1600mm, 1800mm, 2000mm, 2200mm, 2600mm (adaptations possible)
• Range mentioned (marketing): widths 400–2600 mm (custom capacities)
• Accessory options: scraper, brush, stone trap, stainless modules
• Adaptation: designed for abrasive materials; standardized spare parts
• Parameters to provide for sizing: particle size, desired length, belt width, material to convey, throughput in t/h or m³/h, environmental constraints and line integration
