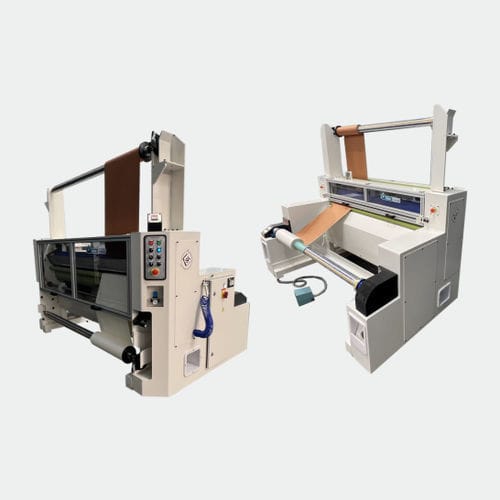

Hot laminating machine

coldautomatedwith slitting machine

Overview
SUTEAU-ANVER laminating machines are engineered with over 75 years of experience for laminating sheets and rolls across a wide range of flexible materials including foam, rubber, leather, felt, adhesives, foils and tapes. The range includes manual, semi-automatic and fully automatic industrial configurations, designed for easy integration into production lines.

Key features

• Versatile processing of sheets and rolls; compatible with foam, rubber, leather, felt, adhesives, foils and tapes.
• Hot and cold laminating modes; capable of handling double-sided tape to silicon paper.
• Production speed up to 50 m/min.
• Intuitive multi-language interface with programmable recipe saving.
• Multiple configurations and options (unwinders/rewinders, heating systems, manual or automatic cutting).
• Welded mechanical frame for industrial use and long service life.

Options

• Heating systems
• Trimming (delignage)
• Manual or automatic cross cutting
• Unwinders
• Rewinders
• Longitudinal cutting
• Conveyor belt
• Simple or vacuum tables
• Stackers

Available versions

• For sheets only
• For rolls only
• For both rolls and sheets

Technical features
Standard width: from 600 to 2500 mm
Laminating speed: 0 to 50 m/min
Roller diameter: 200 mm
Maximum roller opening: 150 mm
Internal core diameter: 76 mm (other sizes on request)

Typical sectors

• Automotive
• Aeronautics
• Composites
• Packaging
• Flooring
• Footwear
• Medical
