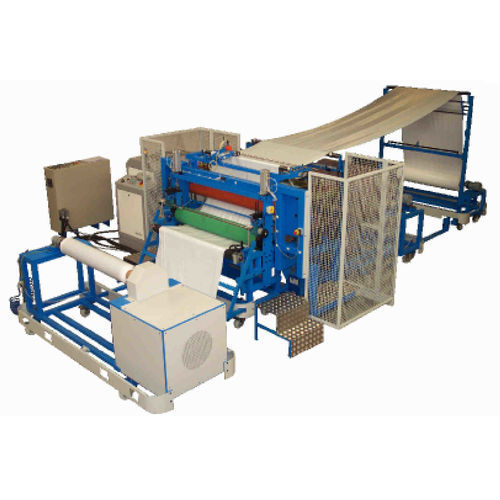

Industrial lamination line

Overview
For many years SUTEAU-ANVER has manufactured glue-transfer laminating machines (for example, laminating a silicone support previously adhesived with foam) and also designs and supplies complete laminating lines that deposit HOTMELT adhesive by slot-type (lip) nozzles directly onto the material or support. The line is configured for continuous industrial production and integrates a ROBATECH slot-nozzle gluing system.

Main advantages

• Precise control of deposited adhesive weight (grammage)
• Adjustable deposit width for process flexibility

Line configuration and components
The line is engineered and built by SUTEAU-ANVER and includes a ROBATECH slot-nozzle gluing unit.

• Paper and PE unwinder at the start of the process
• Foam unwinder
• Anti-static regulator to neutralize static charges
• Spreader bar to guide rollers and maintain web alignment
• Automatically regulated system that deposits HOTMELT adhesive onto the paper/support
• Double roller laminating unit to press and advance the laminated web
• Rewinding unit to collect the finished product

Applications

• Laminating of soft materials, including silicone supports previously glued with foam and other flexible substrates

Characteristics / technical specifications

• Gluing system: ROBATECH slot-type (lip) nozzle system
• Adhesive type: HOTMELT (slot-nozzle deposition)
• Process control: automated regulation allowing control of adhesive weight and deposit width
• Line components: paper & PE unwinder, foam unwinder, anti-static regulator, spreader bar, regulated HOTMELT deposition system, double roller laminating unit, rewinding unit
