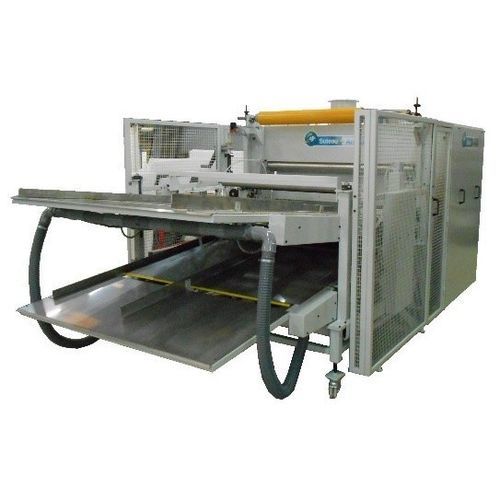

Hot laminating machine

roll-to-rollautomatedmanual

Overview
Developed and manufactured by SUTEAU-ANVER, this laminating machine is designed for heat bonding (thermal fusion of one face of each sheet) of two PE sheets. Other thermoplastic materials available on request. Sheets can be fed and discharged manually or by optional automatic systems.

Technical datas of PE sheets
Width: 400 mm – 1 500 mm
Length: 600 mm – 2 600 mm
Entrance thickness: 10 mm – 290 mm
Exit thickness: 20 mm – 300 mm

Technical features
Frame
Tubular painted welded frame with adjustable leveling feet.

Lower entrance plate
Lower entrance plate in punched sheet metal; corner manually adjustable from 0° to -10°. Two lateral guides manually adjustable to adapt to different sheet widths.

Upper entrance plate
Upper entrance plate in punched sheet metal; height manually adjustable to accommodate various sheet thicknesses. Two lateral guides manually adjustable.

Heating nozzle
Heating nozzle fixed at the end of the upper plate (in front of the calender) to melt the material before bonding. Nozzle temperature adjustable on the control panel from 50 to 250 °C (other ranges on request). Nozzle height adjustable manually.

Calender
The laminating unit comprises 8 motorized rollers (4 upper and 4 lower) driven by a gearmotor. Roller opening is manually adjustable (lower rollers fixed, upper rollers adjustable). Collect table (exit) length: 2.5 m.

Control / operating data (as listed)
Advance speed: adjustable from 1 to 10 m/min (other specifications indicate 3 to 15 m/min via potentiometer on the control panel).
Nozzle temperature at outlet: adjustable from 50 to 250 °C (other ranges on request).
Thickness for laminating: adjustable from 20 to 300 mm.
Upper entrance plate height: manual adjustment.
Upper entrance plate angle: manual adjustment from 15° to 20°.
Lower entrance plate angle: manual adjustment from 0° to -10°.
Electrical supply: 400 V three-phase + Neutral + Earth, 50 Hz.
Pneumatic supply: dry air, 6 bar.

Options

• Adhesive unwinder with brake
• Automatic sheet feeding system
• Working from rolls
• Longitudinal cutting
• Cross cutting
• Rewinder
• Sheet stacker

Technical characteristics / specifications

• Manufacturer: SUTEAU-ANVER
• Application: Heat bonding of two PE sheets (fusion of one face of each sheet)
• Sheet width range: 400 mm – 1 500 mm
• Sheet length range: 600 mm – 2 600 mm
• Entrance thickness range: 10 mm – 290 mm
• Exit thickness range: 20 mm – 300 mm
• Laminating thickness adjustment: 20 mm – 300 mm
• Number of motorized rollers: 8 (4 upper, 4 lower) driven by gearmotor
• Roller speed control: adjustable via potentiometer (documents list 3–15 m/min; separate table lists 1–10 m/min)
• Nozzle temperature range: 50–250 °C (adjustable on control panel)
• Nozzle: heating nozzle fixed at extremity of upper plate; manual height adjustment
• Upper entrance plate: punched sheet metal, height adjustable, lateral guides adjustable, corner 15°–20°
• Lower entrance plate: punched sheet metal, corner manually adjustable 0° to -10°, lateral guides adjustable
• Collect table length (exit): 2.5 m
• Electrical supply: 400 V three-phase + Neutral + Earth, 50 Hz
• Pneumatic supply: dry air, 6 bar
• Other materials and temperature ranges available on request
