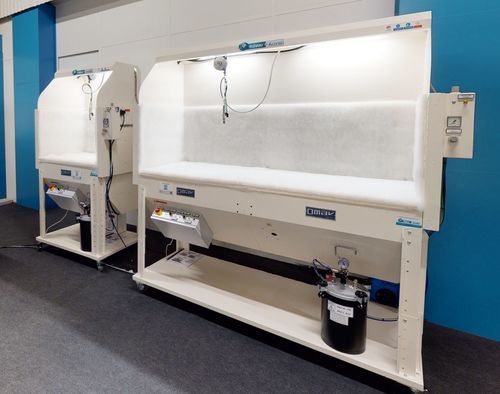

Non-contact gluing machine TP series

manualcardboardpaper

Product overview
Gluing workstation for spraying aqueous, latex or solvent-based adhesives. Mobile bench with folding sides, fully independent and powered by a single-phase 220 V supply. Complete spraying system supplied with spray gun and pressurized 10 Lt container, designed for near-operator workshop gluing operations.

Main features

• Spraying table with adjustable height
• Lockable wheels for mobility
• Work surface: 650×1650 mm
• Vacuum capacity: 2x2400mq/h
• Three-speed adjustable fan
• Tilting work surface (E version)
• Side suction (L version)
• Top cover available on request (C version)
• Complete spraying system with spray gun (PGS standard; adaptable)
• Suitable for latex, water-base or solvent-base adhesives
• Single-phase 220 V connection; fully independent and movable with folding sides

Options

• Top light
• Side foldable shelves/tablets

Available versions

• Standard version equipped with a PGS spray gun; configurable to accept different spray guns
• Nozzle adaptable according to adhesive viscosity

Caractéristiques / spécifications techniques

• Model: OMAV TP80 TP160
• Work surface dimensions: 650×1650 mm
• Vacuum capacity: 2x2400mq/h
• Adjustable table height
• Lockable wheels for workshop mobility
• Tilting work surface: E version
• Side suction: L version
• Top cover: C version (on request)
• Complete spraying system with spray gun (PGS standard)
• Pressurized container: 10 Lt (for latex, water-base or solvent-base adhesives)
• Nozzle adaptable to adhesive viscosity
• Power: single-phase 220 V connection
• Folding sides; fully independent and easily movable
