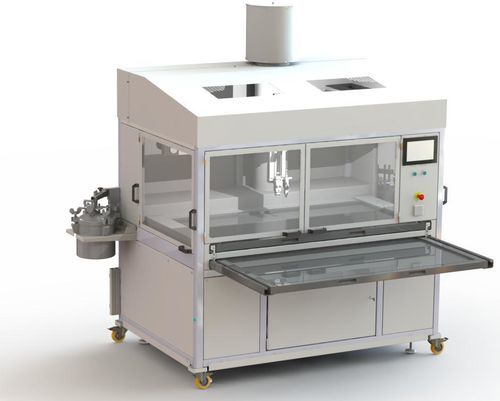

Cold glue dispensing machine SA 158

fully-automaticfor leather

Overview
The SUTEAU-ANVER SA 158 is a flat gluing robot designed for automatic application and drying of modern aqueous adhesives on soft materials (leather, synthetics, foam, textiles, plastics, felt). The system integrates two interchangeable working trays so one tray can be loaded while the other undergoes gluing and drying cycles. Automatic spray-height control and a pressurised INOX glue tank ensure consistent application.

Key points

• Consistent, uniform glue application
• Simple operator interface for efficient cycle handling
• Accessible glue adjustments for cleaning, filling and maintenance
• Two working areas enabling concurrent preparation and gluing (standard 1500×700 mm)
• Automatic spray height adjustment linked to the active tray

Main features

• Adjustable gluing length via detection cell
• Automatic spray gun supplied by a pressurised glue tank
• Drying assisted by a fan accelerator
• Rising suction tank that presses to the tray during gluing
• Dust recovery filter for extraction of overspray
• Grids holder compatible with Teflon and removable parts for maintenance
• Enclosure treated with bond-breaker protection and fitted with an access door for cleaning
• Glue tank in INOX stainless steel, capacity 10 litres

Business fields

• Synthetic materials
• Textile
• Leather
• Foams
• Plastics
• Felt
• Other flexible materials

Options

• Integrated lighting
• Height-adjustable frame
• Removable rail for pressurised glue tank

Technical specifications

• Standard: 2 working areas 1500×700 mm (other sizes available on request)
• Alternative working area sizes: pneumatic version 1400×700 mm; electric version 1200×700 mm
• Overall dimensions: 2100 × 1180 × 1540 mm
• Programming and display for gluing areas
• Electric supply: Three-phase 400 V 50 Hz + neutral + earth
• Electric power: 0.6 kW (standard) — max. 2.5 kW
• Pneumatic supply: dry air at 6 bars
• Air consumption (per cycle): 5 L/min
• Glue tank capacity: 10 L (INOX)
