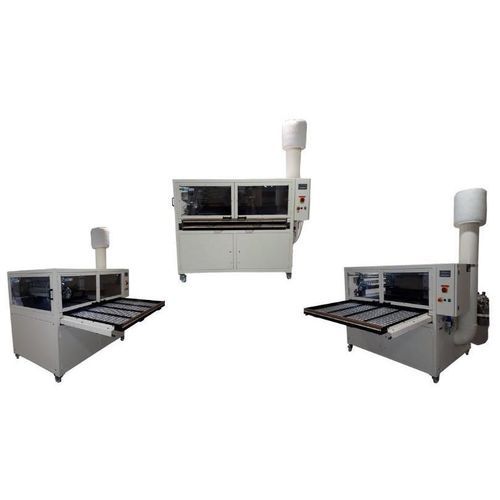

Cold glue dispensing machine SA 157 ASP

fully-automaticfor leather

Product overview
This gluing robot manufactured by SUTEAU-ANVER is designed for automatic application and drying of new-generation aqueous adhesives used to bond soft materials (leather, synthetic materials, etc.).

Its strong points

• Consistent, uniform gluing
• Simple operation enabling high productivity
• Accessible glue adjustments to facilitate stoppages, cleaning and refilling

Working areas & control
2 working areas (1500 × 700 mm) allow one table to display glued parts while the other is used for gluing and drying. Automatic adjustment of spray height according to the table in use.

Integrated equipment

• Gluing length adjustable by detection cell
• Automatic spray gun supplied by a pressurized glue tank
• Drying time accelerated by fan
• Suction tank to press parts firmly to the tray during gluing
• Dust recovery filter
• Teflon-coated removable grid holders
• Cabinet treated with a bond-breaker finish and fitted with an access door for cleaning
• Glue tank in INOX steel (10 liters)

Business fields

• Synthetic materials
• Textiles
• Leather
• Foams
• Plastics
• Felt
• Others

Options

• Lighting
• Elevation
• Pressurized tank on removable rail

Technical specifications

• 2 working areas of 1500 × 700 mm (other sizes on request)
• Overall dimensions: 2100 × 1180 × 1540 mm
• Programming display for gluing zones
• Electric power: 0.6 kW
• Pneumatic pressure: 6 bars
• Glue tank: INOX steel, 10 liters
• Automatic spray gun with pressurized glue tank
• Suction tank for firm pressing to the tray during gluing
• Drying fan accelerator and dust recovery filter
