Universal data-logger S330/331 series

powerUSBEthernet

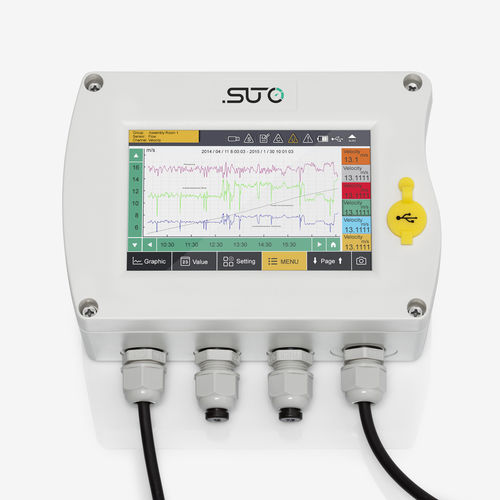

S330 / S331 from SUTO is a very powerful yet cost effective new data logger and display solution. The high resolution 5” graphic display allows an easy operation where details are much sharper shown compared to many of the smaller low resolution displays. The USB port works as a slave in combination with a PC, but also as a master when recorded data has to be transferred to a USB stick. Its versatility in regards of sensor inputs makes it a perfect solution for most measurement tasks. FEATURES ✓ - Measures, displays and records ail relevant parameter of a compressed air Systems: flow, dew point pressure, température, power consumption, compressor status, and so on. ✓ - High resolution 5" colour touch screen interface ✓ - Ail SUTO sensors are connectable as well as third sensors are connectable ✓ - 16 x Modbus inputs (58 standard or optional 108 Channels)2 x SDI inputs (20 channels), 2 x SDI inputs (20 channels), 2 x Analog and puise input (4 channels). Plus 10 Virtual channels for calculations like kW/rr^/min orDifferential pressure ✓ - 2 wall casings available (4 or 7 cable glands) */ USB interface for data transfer to data stick or PC ✓ - RS-485 (Modbus/RTU, SUTO-Bus) and Ethernet (Modbus/TCP, SUTO-Bus) interface to factory automation System */ 10 Wsensor power supply (24 VDC) Data logger (S331 only): 100 million values */ Alarm monitoring with 2 relay outputs */ Integrated web server for remote monitoring */ Quick setup */ Various options for System extension */ Monitor compressor run time
