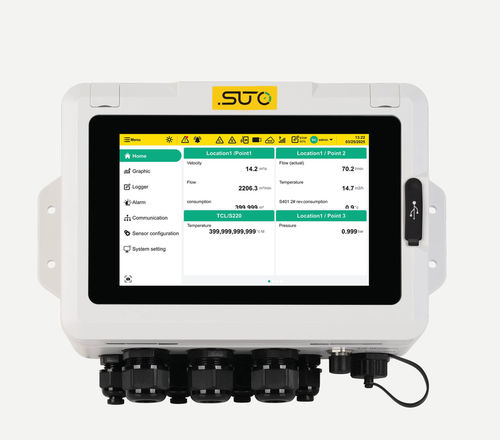

USB data-logger S332

EthernetonlineRS-485

Overview
The S332 Display and Data Logger centralizes data acquisition, visualization, storage, and analysis into one platform. Designed for compressed air and industrial gas systems, the S332 delivers real time visibility across the entire network, from generation to point of use. Connect up to 150 channels and monitor your full compressed air network from a single 7 inch color touch screen.

One Device, Complete Visibility
Connect up to 150 channels and monitor your full compressed air network from a single 7 inch color touch screen. The S332 supports SUTO iTEC and third party sensors through Modbus/RTU, Modbus/TCP, analog, and digital inputs, enabling integration of existing measurement points without extra hardware.

Powerful Data Logging and Analysis
The integrated 10 GB data logger records up to 4.5 billion data points for long term trend analysis. Logged files can be exported for reporting, energy management, and compliance documentation. Customizable channel charts and real time trends support quick interpretation and action.

Compliance Built In
User management, audit trail, and electronic signature features support FDA 21 CFR Part 11 requirements. Role-based access with Admin, Operator, Auditor, and Manager accounts keeps system operation secure and fully traceable, making the S332 suitable for pharmaceutical and regulated industries.

Access From Anywhere
The integrated web server provides remote viewing and operation over a local network. With an optional 4G/LTE connection and the S4C Web platform, the device can be monitored, configured, exported, and upload data to a SaaS cloud from remote locations.

Reliable Alarm Management
Configurable channel-specific alarm thresholds with real time and historical alarm recording help detect issues early and reduce risk. Built-in relays (expandable up to ten) trigger immediate actions when limits are exceeded.

Robust and Easy to Install
The IP65 rated housing protects the device in industrial conditions. The S332 supports both wall and panel mounting and is available in AC and DC versions.

Applications

• Compressed air system operators
• Energy management projects
• Manufacturing and production facilities
• Pharmaceutical and regulated industries
• Factory-wide utility monitoring
• Multi-point sensor monitoring applications

S332 and S331 at a Glance (comparison)
Feature | S332 | S331
Screen Size | 7 inch | 5 inch
Screen Type | Capacitive touchscreen | Resistive touchscreen
Resolution | 1280 x 800 | 800 x 480
Storage | 10 GB | 3 GB
Modbus Input | Up to 150 channels | 58 channels
Analog Sensors | Up to 8 | Up to 2
Digital Sensors | Up to 8 | Up to 2
Relay Outputs | Up to 10 | 2
Power for Sensor | 50 W (AC), up to 168 W (DC) | 10 W (Compact), 50 W (Flex)
Configuration | S332 Local Display and S4C Web | S4C Display
FDA 21 CFR Part 11 | Yes (audit trail, electronic signature, multi user) | No
Web Server Remote Access | Supported (remote viewing and operation) | Not supported

Signal Interface & Supply (key technical table)
S332 SIGNAL INTERFACE & SUPPLY
Input signals:
Modbus signal input | Modbus/RTU Master; Modbus/TCP Master (up to 150 measuring channels)
Analog input (Optional) | 0 ... 20 mA / 4 ... 20 mA, 0 ... 10 V / 0.5 ... 4.5 V; Up to 2 analog input modules, each module has 4 analog input channels
Digital input (Optional) | Up to 2 digital input modules, each module has 4 digital input channels
Output signals:
Alarm output | Built-in 2 relays; Up to 2 relay modules (optional), each module has 4 relays
Modbus signal output | 1 x Modbus/RTU (Slave); 1 x Modbus/TCP
Data interface / Connection | Modbus/TCP Master (Ethernet); Modbus/TCP Slave (Ethernet); Modbus/RTU Master (RS-485); Modbus/RTU Slave (RS-485); USB-C port
Power supply:
AC version | 85 ... 305 VAC, 60 W, 50/60 Hz
DC version | 18 ... 30 VDC, Max. 7 A
Sensor supply:
AC version | 24 V, max. 50 W
DC version | 24 V, max. 150 W

General Data (key technical table)
GENERAL DATA
Display | Integrated 7" high-resolution graphic display, Resolution: 1280 x 800 pixels touch screen
Data logger / Storage | Internal, 10 GB, ~530 days typical (example: 50 channels @ 1s sampling)
Material / Housing | PC + ABS
Protection class | IP65
Approvals | CE, FCC
Installation | Panel, wall mountable
Dimensions | See dimensional drawing (manufacturer's documentation)
Cable entry diameter | 3 x M20 PG connector (each for 2 cables, Ø5 ... 6 mm); 4 x M12 PG connector (each for 1 cable, Ø5 ... 6 mm)
Weight | 1 ... 1.8 kg (depending on installed options and housing)
Operating conditions:
Operating temperature | 0 ... +45 °C
Operating humidity | <90%, no condensation
Transportation temperature | -20 ... +60 °C
Storage temperature | -20 ... +70 °C

Downloads (available documents)
Product information sheet and manual are available in PDF format from the manufacturer's downloads (model-specific info and installation manual).

Caractéristiques / spécifications techniques

• Model: S332
• 7 inch high resolution capacitive color touchscreen (1280 x 800)
• Internal storage: 10 GB (records up to ~4.5 billion data points)
• Connects up to 150 measuring channels (Modbus/RTU, Modbus/TCP)
• Analog inputs: optional modules, up to 2 modules × 4 channels each (0/4–20 mA, 0–10 V / 0.5–4.5 V)
• Digital inputs: optional modules, up to 2 modules × 4 channels each
• Alarm outputs: built-in 2 relays; expandable up to 10 relays via modules
• Modbus/RTU and Modbus/TCP Master/Slave support; USB-C port
• Sensor power supply: AC version 24 V max. 50 W; DC version 24 V max. 150 W
• Power supply: AC 85–305 VAC (60 W) or DC 18–30 VDC (max 7 A)
• IP65 housing; panel or wall mountable
• Housing material: PC + ABS
• Approvals: CE, FCC
• Operating temperature: 0 to +45 °C; storage -20 to +70 °C
• FDA 21 CFR Part 11 support: user management, audit trail, electronic signature
• Optional remote access via integrated web server and optional 4G/LTE; compatible with S4C Web platform
• Typical weight: 1.0–1.8 kg depending on options
