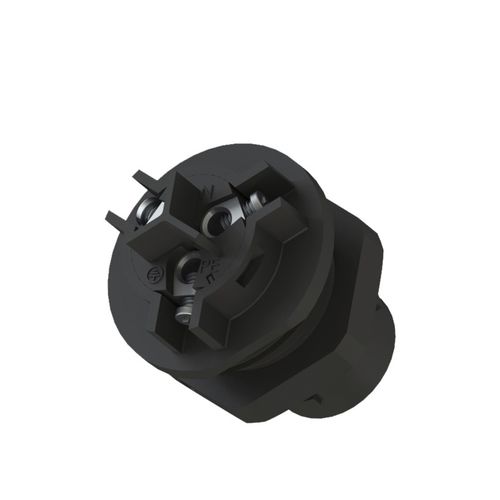

Data connector EN030-1126-0001electrical power supplySocketovermolded
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- Socket, overmolded
- Shape
- circular
- Connection type
- screw, screw-locked
- Size
- M23, M16
- Electrical characteristics
- power, 3-pole, insulation, AC
- Material
- thermoplastic, copper, silver-plated, silicone rubber
- Product applications
- transmission, for cables
- Domain
- for industrial applications, for military applications, for data transmission, indoor/outdoor, for LED lighting
- Protection class
- IP68
- Other characteristics
- waterproof
- Primary current
25 A
- Voltage
250 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
EN Series 3 Pin 25A Male Panel Mount Connector
Contact Resistance≤10mΩ
Insulation Resistance≥1000MΩ
Wire Gauge：2.5~6mm²
Connection Method：Screw crimped, riveted crimped
Housing Material：Engineering plastic
Conductor Material：Copper alloy with Nickel plated
Compliant with EN61535, CQC3315, UL2238
Higher safety standard, specially designed structure, unlock tools available,better insulation
For applications in distributed PV power plant, indoor cabling
Certified by TUV, CQC, UL, CE, CSA
