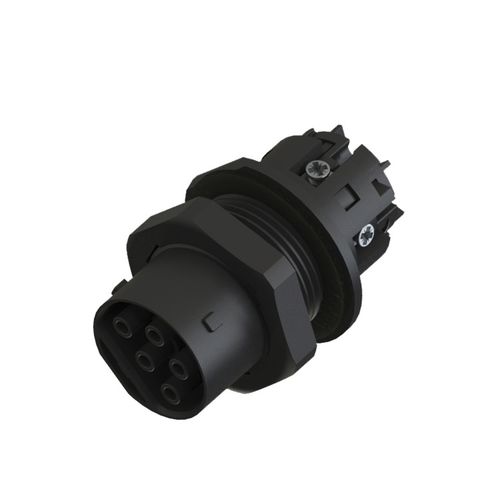

Data connector EN050-2136-00electrical power supplyovermoldedround
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- overmolded
- Shape
- round
- Connection type
- plug-in, screw-locked, screw coupling
- Size
- M23, M16
- Electrical characteristics
- 5-pole, AC, AC voltage
- Material
- thermoplastic, copper, silver-plated, silicone rubber
- Product applications
- transmission, military, lighting
- Domain
- for industrial applications, for lighting applications, for underwater applications, for building
- Protection class
- IP68
- Other characteristics
- waterproof
- Primary current
25 A
- Voltage
500 V
- Operating temperature
-40 °C, 85 °C
(-40 °F, 185 °F)
Description
EN Series 5 Pin 25A Female Panel Mount Connector
Contact Resistance≤10mΩ
Insulation Resistance≥1000MΩ
Wire Gauge：2.5~6mm²
Connection Method：Screw crimped
Housing Material：Engineering plastic
Conductor Material：Copper alloy with Nickel plated
Compliant with EN61535, CQC3315, UL2238
Higher safety standard, specially designed structure, unlock tools available,better insulation
For applications in distributed PV power plant, indoor cabling
Certified by TUV, CQC, UL, CE, CSA
