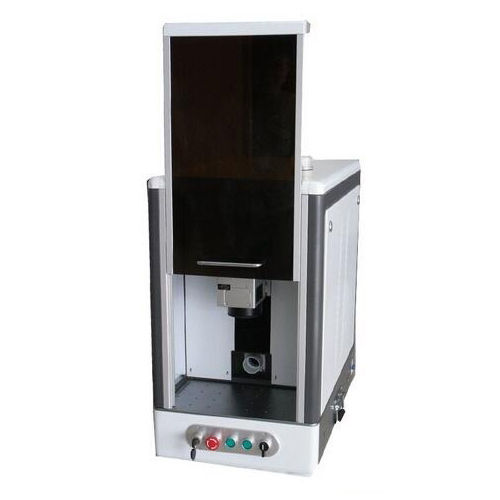

fiber laser marking machine / benchtop / compact / high-speed
T-FL20-FEUS

{{requestButtons}}

Characteristics

  • Technique:

    fiber laser

  • Configuration:

    benchtop

  • Other characteristics:

    compact, high-speed, air-cooled, for metal, for non-metals, desktop

  • X travel:

    100 mm

  • Y travel:

    100 mm

Description

1. Machine General characteristics:

Machine design with full enclosed which can effectively prevent the laser damage to the human eye.

Designed with smart and compact size, esay to use and to move, save space, using common air-cooling system. Fiber output, flexible application and easy to operate. No daily maintenance , no consumable parts and long lifetime.

★ Advantages of our desktop fiber laser marking machine:

We adopt the Germany top quality fiber laser source, no maintenance and no future wearing parts, the fiber laser source estimated working hours is 100,000 hours, maintenance free and 24 months guarantee for whole machine .

Environmental requirement is simple, without constant temperature and humidity and water cooling facilities. Minimal supplies, simplest maintenance.

Large lifting range, apply to different dimensions of products marking, rotary axis and other non-standard tooling can be added;

Fiber lifts: L*W*H 72cm*32cm*68cm, fiber electrical cabinet: L*W*H 45cm*21cm*39cm, machine Net weight only has 51KG.

Up and down working table which makes the machine more convenient to adjust focus point, machine with the He-Ne red light positioning makes operators easy to observe the laser marking range before marking.

Adopt our own developed advanced marking software which has many customized functions, the high-speed scanning galvanometer key parts are imported from Germany .
