laser welding machine / automatic / three-phase / programmable
ST-T400

Add to MyDirectIndustry favorites
Compare this product
laser welding machine / automatic / three-phase / programmable laser welding machine / automatic / three-phase / programmable - ST-T400
{{requestButtons}}

Characteristics

  • Technique:

    laser

  • Operational mode:

    automatic

  • Other characteristics:

    three-phase, programmable, water-cooled, high power

  • Power:

    400 W

Description

1, Machine's introductions:

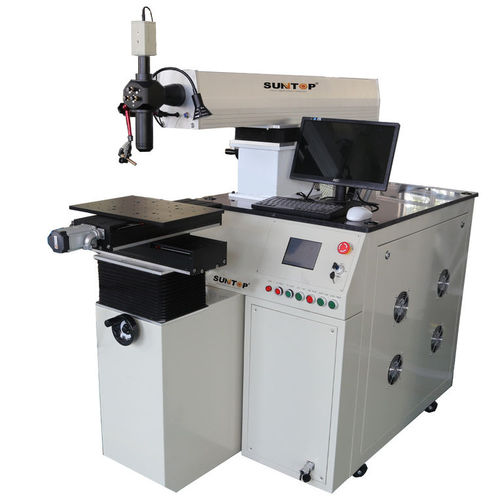

ST-T400 Series laser welding machine adopts imported golden plating reflect cavity,6KW dual pulse Xe-lamp.Wave current can control the switch power supply,high power,Pulse programmable and intellectualized system management, industrial PC control(two axis ), customer can choose the optional rotary working table(φ80mm or φ125mm), CCD Monitor system and 5P water cooling system.

2, Machine's main advantages:

Comparing with the traditional welding technology,laser welding with the advantage as follows :

2.1 Fast speed, high depth and almost no deformation.

2.2 In the room or special conditions for the welding and welding equipment. for example, a simple laser by the magnetic field. the beam will not be offset ; laser in a vacuum, air and some gas in the environment could apply soldering, and passed the glass or beam transparent material to welding.

2.3 Can weld the difficult melt material, such as the titanium, quartz etc. Can weld the isomerism material with good quality.

2.4 High power density after laser focus.When high power workpiece welding,depth ratio can be 5:1,tiptop can be up to 10:1.

2.5 Can be used for minisize weld. The laser beam is focused to a light, and make accurate positioning can be used in mass production, automated a small piece in. the group of welding

2.6 To be welded inaccessible areas, such a long distance welding, contact with flexibility.
